FURUTAKA heavy cruisers (1926)

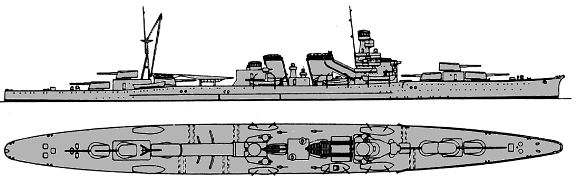

Furutaka 1926

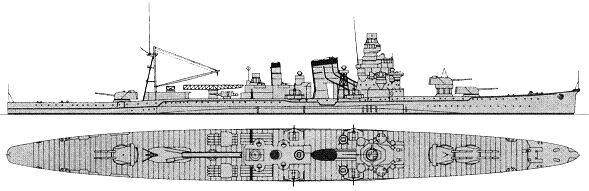

Furutaka 1942

Name Yard No Builder Laid down Launched Comp Fate
古鷹 <Furutaka> 390 Mitsubishi, Nagasaki 5/12/1922 25/2/1925 31/3/1926 sunk 11/10/1942
加古 <Kako> 540 Kawasaki, Kobe 17/11/1922 10/4/1925 20/7/1926 sunk 10/8/1942



Displacement standard, t

8100

Displacement full, t

9544

Length, m

176.8 pp 183.5 wl 185.2 oa

Breadth, m

15.8

Draught, m

5.56

No of shafts

4

Machinery

Furutaka: Mitsubishi-Parsons geared steam turbines, 12 Kampon boilers

Kako: Kawasaki-Curtis geared steam turbines, 12 Kampon boilers

Power, h. p.

102000

Max speed, kts

34.5

Fuel, t

oil 1010, coal 570

Endurance, nm(kts)

6000(14)

Armour, mm

belt: 76, deck: 35, turrets: 25

Armament

6 x 1 - 200/50 3-shiki, 4 x 1 - 76/40 11-shiki, 2 x 1 - 7.7/80, 12 - 610 TT (beam), 1 seaplane (HD-26)

Complement

625

Ship project history: The history of creation of Furutaka class cruisers goes back to 1916 when three "scouts" have been included in the program "8-4" (7200t standard displacement, 36kts, 12 140mm guns in single and twin mounts, 610mm TT and 76mm belt). When in Japan it became known about building of Omaha class cruisers in the USA, it has been decided to alter project, and the place of "scouts" in the program was held by "standard" 5500t cruisers.

In 1918 in technical department the redesigned "scout" project (8000tstandard, 36.5kts, 10-12 140mm guns in 5-5 twin turrets arranged in at centreline pyramidally) has been prepared. Building was provided by program "8-8", however order delivery again have put aside: this time the big impression on Japanese admirals British Hawkins class cruisers with 190mm guns have effected. Project of "scout" again have shipped on redesigning.

In summer 1921, for half a year before signing of Washington Treaty, chief of Naval technical department captain Yuzusu Hiraga has created new project of 7500t scout. In it at expense of application of some constructive innovations attempt to combine in minimum possible displacement the artillery exceeding 190mm guns of Hawkins, speed not less than 35kts, better, than on the American and British cruisers, protection and a sufficient endurance has been undertaken. Including of side and deck protection into hull strength framing became the basic innovation directed on hull weight reduction. Hull was fulfilled flush-decked, and upper deck in a direction from stem aftward received characteristic for many subsequent Japanese ships "wavy" profile. The greatest freeboard height (8.5m) was at stem, amidships this characteristic got out of a reason of a necessary stability, and aft was fulfilled as far as possible low (4.5m). The majority of constructive innovations has been tested on light cruiser Yubari, specially constructed for this purpose.

Armour of new cruisers ensured protection against 152mm shells on distances from 12000 to 15000m. 76mm belt with 80m length had a declination 9 outside. Its upper edge was connected with 35mm deck which thickness decreased to 32mm closer to centerline.

The pyramidal arrangement of main artillery was borrowed the project of "scout" of 1918, but now six turrets had 200mm/50 guns. Additionally there were 4 AA 76mm guns and 12 610mm fixed TTs placed aside.

4-shaft machinery with 102000hp power included geared turbines. The steam for them was generated by 12 boilers, 10 from which had purely oil, and two mixed heating. Full stowage of fuel included 1010t oil and 570t coal that ensured an endurance of 6000 miles at 14kts.

At building of these ships the lack generic in Japanese shipbuilding of that time showed: extremely big building overload which has reached in this case 1000t (under the project standard displacement was 7100t, normal at 2/3 fuel stowage 8450t; the actual made 8100 and 9433t respectively). Decrease in a designed speed from 35 to 34.5kts became overload corollary.

In 1936-1939 Furutaka and Kako have passed cardinal modernization in which course they have lost a unique pyramidal arrangement of main artillery: single turrets were demounted and have replaced by twin, placed more traditionally, two in a fore end and one aft. Instead of fixed TTs 2 quadruple trainable mounts were installed with complete set of spare torpedoes. Changes have concerned also machinery: mixed-fuel boilers were demounted, that has allowed to moderate the sizes of second funnel, steam output of oil-firing boilers was raised. Oil stowage thus has increased to 1858t. As the armament weight has grown, for preservation of stability cruisers were fitted with bulges. Now the hull beam has reached 16.9m instead of former 15.8m.

Ship protection: 76mm main belt (80x4.1m) protected machinery only and was slightly inclined outside (9). It was connected with 35mm main deck by upper edge, thickness of main deck decreased to 32mm near centerline. Underwater protection consisted of bulges, there was not armored longitudinal bulkhead. Guns had only 25mm protection.

Modernizations: 1932, Kako; 1933, Furutaka: - 4 x 1 - 76/40, 2 x 1 - 7.7/80; + 4 x 1 - 120/45 10-shiki, 2 x 2 - 13.2/76, 1 catapult (up to 2 seaplanes).

(7/1936 - 12/1937, Sasebo K K), Kako; (4/1937 - 4/1939, Kure K K), Furutaka: - 6 x 1 - 200/50, 12 - 610 TT; + 3 x 2 - 203/50 3-shiki 2-go, 4 x 2 - 25/60 96-shiki, 2 x 4 - 610 TT (16); main guns placed in turrets with 25mm armour and 57mm barbettes, CT received 36mm protection, catapult was replaced by more powerful one. Boilers were replaced by 10 oil-burning Kampon. Fuel stowage was 1858t of oil, endurance was 7900(14) nm(kts). Engine power increased to 110000hp (maximal speed was 33kts). New bulges were fitted, breadth rose to 16.9m and displacement to 8700/11273-11295 t. Complement was 639.

Naval service: Furutaka 11/10/1942 was sunk in battle of Cape Esperance by gunfire and torpedo of American cruisers Salt Lake City, Boise, San Framcisco, Helena and destroyers.

Kako 10/8/1942 was sunk NW off Rabaul by 3 torpedoes from American submarine S44.



Kako 1930
