YODO patrol craft (2002-2013)

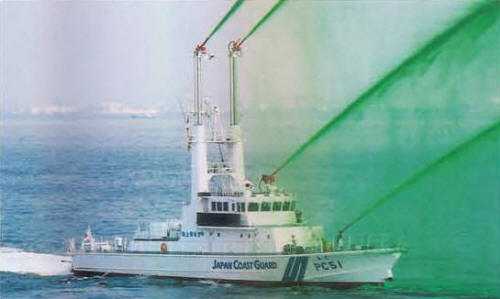

Yodo 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| よど [Yodo] | PC51 | Sumidagawa, Tokyo | 13.3.2001 | 2.10.2001 | 29.3.2002 | in service (2019) | |
| ことびき [Kotobiki] | PC52 | Sumidagawa, Tokyo | 3.7.2002 | 23.10.2002 | 27.3.2003 | in service (2019) | |
| なち [Nachi], 2015- りゅうおう [Ryuo] | PC53 | Ishihara, Takasago | 3.7.2002 | 29.1.2003 | 27.3.2003 | in service (2019) | |
| ぬのびき [Nunobiki] | PC54 | Sumidagawa, Tokyo | 3.7.2002 | 4.12.2002 | 27.3.2003 | in service (2019) | |
| ふどう [Fudo] | PC55 | Sumidagawa, Tokyo | 2011 | 29.6.2012 | 21.1.2013 | in service (2019) | |
| りゅうせい [Ryusei] | PC56 | Sumidagawa, Tokyo | 2011 | 17.8.2012 | 14.2.2013 | in service (2019) | |
| たかたき [Takataki] | PC57 | Niigata SY | 2011 | 8.9.2012 | 15.2.2013 | in service (2019) | |
| あおたき [Aotaki] | PC58 | Sumidagawa, Tokyo | 2011 | 2012 | 21.3.2013 | in service (2019) | |
| なち [Nachi] | PC59 | Niigata SY | 2011 | 2012 | 29.3.2013 | in service (2019) | |
| みのお [Minoo] | PC60 | Nagasaki SY | 2011 | 2012 | 29.3.2013 | in service (2019) |
Technical data
| Displacement standard, t | 125 |
|---|---|
| Displacement normal, t | 190 |
| Length, m | 35.0 wl 37.0 oa |
| Breadth, m | 6.70 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 5200 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Electronic equipment | radar, e/o detector |
| Complement |
|
Graphics
Yodo 2008
Project history
Principally intended for firefighting and are equipped with firefighting monitors on the bow, atop the pilothouse, and atop the two side-by-side combination mast/stacks.
Modernizations
None.
Naval service
No significant events.
