YAMAYURI patrol boats (1978-1988)





Suzuran

Ships


Names Builders Commissioned Losses Transfers Discarding

CL201 やまゆり [Yamayuri]

CL202 たちばな [Tachibana]

CL203 こまくさ [Komakusa]

CL204 しらぎく [Shiragiku], later- とさつばき [Tosatsubaki]

CL205 やぐるま [Yaguruma]

CL206 はまなす [Hamanasu], later- みやぎく [Miyagiku]

CL207 すずらん [Suzuran]

CL208 いそぎく [Isogiku]

CL209 いせぎく [Isegiko]

CL210 あやめ [Ayame]

CL211 あじさい[Ajisai]

CL212 ひまわり [Himawari] CL213 はざくら [Hazakura]

CL214 ひなぎく [Hinagiku]

CL215 はまぎく [Hamagiku]

CL216 ふよう [Fuyume]

CL217 つばき [Tsubaki] CL218 さざんか [Sazanka]

CL219 あおい [Aoi]

CL220 すいせん [Suisen]

CL221 やえざくら [Yaezakura]

CL222 あけび [Akebi]

CL223 しらはぎ [Shirahagi]

CL224 べにばな [Benibana]

CL225 むらつばき [Muratsubaki]

CL226 つつじ [Tsutsuji]

CL227 あしび [Ashibi]

CL228 さとざくら [Satozakura]

CL229 ゆきつばき [Yukisubaki]

CL230 さつき [Satsuki]

CL231 えぞぎく [Ezogiku]

CL232 あかしあ [Akashio], later- はやぎく [Hayagiku]

CL233 こざくら [Kozakura]

CL234 しらうめ [Shirame]

CL235 さるびあ [Sarubia]

CL236 すいれん [Suiren]

CL237 はつぎく [Hatsugiku]

CL238 はまゆり [Hamayura]

CL239 あいりす [Airisu]

CL240 やまぶき [Yamabuki]

CL241 しらゆり [Shirayuri]

CL242 からたち [Karatachi]

CL243 こうばい [Kobai]

CL244 はまゆう [Hamayuu]

CL245 ささゆり [Sasayuri], later- いせぎく [Isegiku]

CL246 こすもす [Kosumosu]

CL247 しおぎく [Shiogiku], later- たかぎく [Takagiku]

CL248 やまはぎ [Yamahagi]

CL249 もくれん [Mokuren]

CL250 いそふじ [Isofuji]

CL251 たまつばき [Tamatsubaki]

CL252 よどぎく [Yodoki]

CL253 いよざくら Iozakura]

CL254 ひめつばき [Himetsubaki]

CL255 ときくさ [Tokikusa]

CL256 むつぎく [Mutsugiku], later- すずらん [Suzuran]

CL257 てるぎく [Terugiko]

CL258 まやざくら [Mayazakura]

CL259 やまぎく [Yamagiko]

CL260 とびうめ [Tobiume]

CL261 ことざくら [Kotozakura]

CL262 みほぎく [Minogiku]

CL263 くろゆり [Kuroyuri]

CL264 ちよぎく [Chiyogiku]

Ishihara, Takasago: CL201-204, 214, 216-218, 221, 222, 225, 227-229, 234, 235, 237, 238, 242-244, 246, 250, 253, 254, 258, 260, 262

Sumidagawa, Tokyo: CL205-209, 219, 223, 224, 226, 232, 240, 245, 247, 251, 255, 256, 261

Yokohama Yacht: CL210, 212, 213, 215, 220, 231, 233, 239, 248, 259, 263

Nobutaka SY: CL211, 230, 236, 241, 249, 252, 257, 264

1978: CL201, 202

1979: CL203-222, 225, 227

1980: CL223, 224, 226, 228-236

1981: CL237, 238, 240, 242

1982: CL239, 241, 243, 244, 247, 248

1983: CL245, 246, 249, 250, 252, 253

1984: CL251, 254-258, 263

1985: CL259-262

1988: CL264

none

none

1999: CL218-221, 224, 229

2001: CL201-204, 225, 230

2002: CL205, 210, 212, 216, 217, 22, 223, 227, 236, 243

2007: CL206-209, 231, 237, 240, 255

2008: CL211, 213, 215, 226, 228, 232, 234, 250, 252, 258, 260, 262, 263

2009: CL214, 235, 238, 241, 242, 244-249, 253, 254

2010: CL251, 257

2011: CL233, 239, 256, 259, 261, 264



Technical data


Displacement standard, t36
Displacement full, t

40

Length, m

18.0

Breadth, m

4.30

Draught, m

0.82

No of shafts

201-249, 251, 264: 2

250, 252-263: 2 waterjets

Machinery

201-249, 251, 264: 2 RD10T AO6 diesels

250, 252-263: 2 S6A-MTK diesels

Power, h. p.

900

Max speed, kts

201-249, 251, 264: 20

250, 252-263: 21.9

Fuel, t

diesel oil

Endurance, nm(kts)

180(19)

Armament

none

Electronic equipment

radar

Complement

6



Graphics

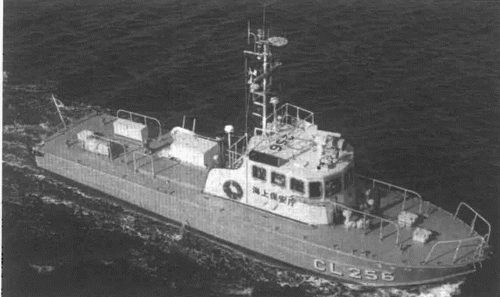

<i>Suzuran</i>
Suzuran


Project history

Small patrol boats, had three water cannon.

Modernizations

None.

Naval service

No significant events.
