TOKACHI small patrol vessels (1954)

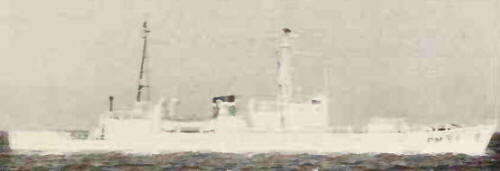

Tokachi 1972
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| とかち [Tokachi] | PS51, 1968- PM51 | Harima, Kure | 11.1953 | 8.5.1954 | 7.1954 | deleted 9.1980 | |
| たつた [Tatsuta] | PS52, 1968- PM52 | Harima, Kure | 9.1954 | deleted 8.1980 |
Technical data
| Displacement standard, t | 257 |
|---|---|
| Displacement full, t | 381 |
| Length, m | 51.8 |
| Breadth, m | 6.60 |
| Draught, m | 2.15 |
| No of shafts | 2 |
| Machinery | 2 Ikegai 6MSB31S diesels |
| Power, h. p. | 1500 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3820(12) |
| Armament | 1 x 1 - 40/60 Mk 3 |
| Electronic equipment | none |
| Complement | 41 |
Standard scale images
Tokachi 1960
Graphics
Tokachi 1972
Project history
Small patrols of 350t class, later rerated as medium patrols.
Modernizations
None.
Naval service
No significant events.
