TAKATSUKI small patrol vessels (1992-1993)

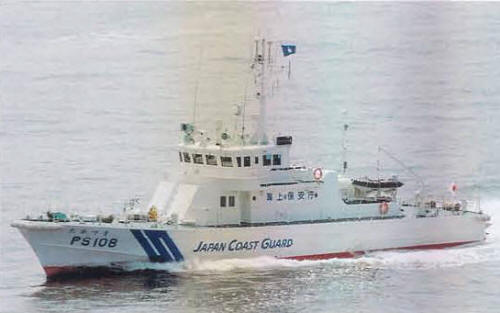

Takatsuki 2005
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| たかつき [Takatsuki] | PS108 | Mitsubishi, Shimonoseki | 1991 | 1992 | 23.3.1992 | in service (2019) | |
| のばる [Nobaru], 2015- かつらぎ [Katsuragi] | PS109 | Hitachi, Kanagawa | 8.9.1992 | 27.1.2993 | 22.3.1993 | in service (2019) |
Technical data
| Displacement standard, t | 115 |
|---|---|
| Displacement normal, t | 180 |
| Length, m | 35.0 |
| Breadth, m | 6.70 |
| Draught, m | 1.20 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V396 TB94 diesels |
| Power, h. p. | 5200 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar, e/o detector |
| Complement | 10 |
Graphics
Takatsuki 2005
Project history
An improved version of the Akagi class incorporating outdrive surface-piercing propulsors. Have infrared surveillance and low-light TV cameras atop the pilothouse.
Modernizations
None.
Naval service
No significant events.
