KAMUI small patrol vessels (1994-2019)

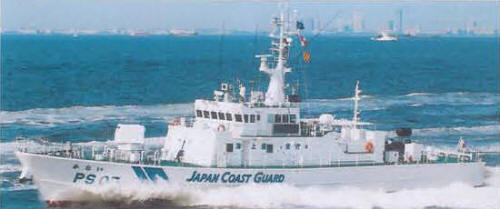

Kamui 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| かむい [Kamui] | PS05 | Hitachi, Kanagawa | 12.4.1993 | 15.11.1993 | 31.1.1994 | in service (2019) | |
| びざん [Bizan], 8.1999- ばんな [Banna], 8.2008- らいざん [Raizan] | PS06 | Mitsubishi, Shimonoseki | 6.4.1993 | 15.11.1993 | 31.1.1994 | in service (2019) | |
| あしたか [Ashitaki] | PS07 | Mitsui, Tamano | 9.12.1993 | 24.6.1994 | 30.9.1994 | in service (2019) | |
| くらま [Kurama], 3.2004- かりば [Kariba] | PS08 | Mitsubishi, Shimonoseki | 21.9.1994 | 25.5.1995 | 29.8.1995 | in service (2019) | |
| あらせ [Arase] | PS09 | Mitsubishi, Shimonoseki | 9.4.1996 | 4.10.1996 | 29.1.1997 | in service (2019) | |
| さんべ [Sanbe] | PS10 | Hitachi, Kanagawa | 9.4.1996 | 22.10.1996 | 29.1.1997 | in service (2019) | |
| みずき [Mizuki] | PS11 | Mitsui, Tamano | 16.3.1999 | 28.4.2000 | 9.6.2000 | in service (2019) | |
| こうや [Koya] | PS12 | Universal, Keihin | 24.3.2003 | 19.11.2003 | 18.3.2004 | in service (2019) | |
| つくば [Tsukuba] | PS13 | Mitsubishi, Shimonoseki | 4.12.2007 | 8.7.2008 | 4.3.2009 | in service (2019) | |
| あかぎ [Akagi] | PS14 | Mitsubishi, Shimonoseki | 4.12.2007 | 21.10.2008 | 4.3.2009 | in service (2019) | |
| びざん [Bizan] | PS15 | Mitsubishi, Shimonoseki | 26.4.2010 | 6.8.2010 | 26.4.2011 | in service (2019) | |
| のばる [Nobaru] | PS16 | Mitsubishi, Shimonoseki | 26.4.2010 | 16.11.2010 | 26.4.2011 | wrecked 8.4.2016 | |
| たかちほ [Takachiho] | PS17 | Mitsubishi, Shimonoseki | 26.4.2010 | 14.4.2011 | 24.8.2011 | in service (2019) | |
| さんれい [Sanrei] | PS18 | Mitsubishi, Shimonoseki | 26.4.2011 | 6.7.2011 | 12.3.2012 | in service (2019) | |
| あさじ [Asaji] | PS19 | Mitsubishi, Shimonoseki | 26.4.2011 | 1.12.2011 | 12.3.2012 | in service (2019) | |
| しんざん [Shinzan] | PS20 | Mitsui, Tamano | 20.2.2019 | in service (2019) |
Technical data
| Displacement standard, t | 182 |
|---|---|
| Displacement normal, t | 197 |
| Length, m | 46.0 |
| Breadth, m | 7.50 |
| Draught, m | 1.70 |
| No of shafts | 2 + 1 waterjet |
| Machinery | 2 Mitsubishi S12U-MTK diesels + 1 Mitsubishi S8U-MTK diesel |
| Power, h. p. | 6400 + 2400 = 8800 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 650(34) |
| Armament | 1 x 3 - 20/76 JM-61-MB Sea Vulcan |
| Electronic equipment | Furuno radar, e/o director |
| Complement | 13 |
Graphics
Kamui 2008
Project history
Mihashi class with modified hull form and 20mm Sea Vulcan Gatling gun.
Modernizations
None.
Naval service
Mizuki was badly damaged in collision 7.9.2010.
