KAGAYUKI patrol craft (1999-)

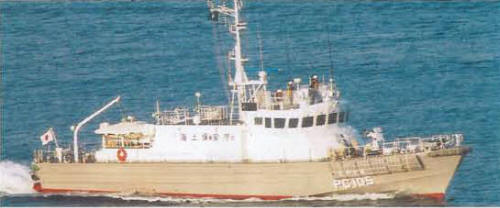

Hayagumo 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
かがゆき [Kagayuki], 2001- はまゆき [Hamayuki], 2006- はやぐも [Hayagumo] PC105   Mitsubishi, Shimonoseki 16.3.1999 28.9.1999 24.12.1999 in service (2019)
むらくも [Murakumo] PC106   Hitachi, Kanagawa 18.1.2002 31.5.2002 19.8.2002 in service (2019)
いずなみ [Izunami] PC107   Ishihara, Takasago 21.6.2002 24.12.2002 18.3.2003 in service (2019)
やえぐも [Yaegumo] PC108   Niigata SY 22.9.2007 5.12.2007 4.3.2008 in service (2019)
なつぐも [Natsugumo] PC109   Sumidagawa, Tokyo 28.9.2007 6.11.2007 4.3.2008 in service (2019)
あきぐも [Akigumo] PC110   Sumidagawa, Tokyo 28.9.2007 6.11.2007 10.3.2008 in service (2019)
たつぐも [Tatsugumo], 2012- はぎなみ [Haginami] PC111   Niigata SY 11.3.2008 10.10.2008 10.3.2009 in service (2019)
いきぐも [Ikigumo] PC112   Sumidagawa, Tokyo 14.3.2008 28.11.2008 10.3.2009 in service (2019)
なつづき [Natsuzuki] PC113   Sumidagawa, Tokyo 14.3.2008 2.12.2008 10.3.2009 in service (2019)
おきぐも [Okigumo] PC114   Niigata SY 14.3.2008 16.4.2009 31.7.2009 in service (2019)
あわぐも [Awagumo] PC115   Sumidagawa, Tokyo 14.3.2008 16.4.2009 31.7.2009 in service (2019)
しまぐも [Shimagumo] PC116   Sumidagawa, Tokyo 14.3.2008 16.4.2009 24.8.2009 in service (2019)
ゆきぐも [Yukigumo] PC117   Niigata SY 15.2.2010 21.9.2010 10.3.2011 in service (2019)
きたぐも [Kitagumo] PC118   Niigata SY 15.2.2010 10.12.2010 10.3.2011 in service (2019)
こまゆき [Komayuki] PC119   Sumidagawa, Tokyo 4.3.2010 24.6.2010 25.2.2011 in service (2019)
かわぎり [Kawagiri] PC120   Niigata SY 18.3.2011 9.11.2011 9.3.2012 in service (2019)
わかづき [Wakazuki] PC121   Universal, Keihin 24.3.2011 4.2.2012 10.7.2012 in service (2019)
いそなみ [Isonami] PC122   Sumidagawa, Tokyo 2012 2013 30.1.2014 in service (2019)
なごづき [Nagozuki] PC123   Sumidagawa, Tokyo 2012 2013 30.1.2014 in service (2019)
やえづき [Yaezuki] PC124   Niigata SY 2012 2013 28.2.2014 in service (2019)
いせゆき [Iseyuki] PC125   Sumidagawa, Tokyo 2016 2017 17.10.2018 in service (2019)
はまゆき [Hamayuki] PC126   Sumidagawa, Tokyo 2017 2018 23.1.2019 in service (2019)
i           2019 building (2019)
ii           2019 building (2019)


Technical data


Displacement standard, t
Displacement normal, t

100

Length, m

32.0

Breadth, m

6.50

Draught, m

2.00

No of shafts

2 waterjets

Machinery

2 MTU 16V4000 M70 diesels

Power, h. p.

5200

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

105-107: 1 x 1 - 12.7/90

108-124: 1 x 3 - 20/76 JM-61-MB Sea Vulcan

Electronic equipment

radar, e/o detector

Complement

10



Graphics


<i>Hayagumo </i>2008
Hayagumo 2008


Project history

Have IR/TV optronic surveillance system.

Modernizations

None.

Naval service

No significant events.
