NAVYPEDIA

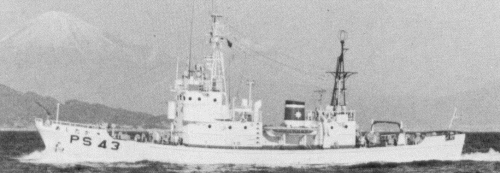

Ashitaka 1975

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
ひだか [Hidaka]	PS32		Azuma Zosen			4.1962	deleted 5.1988
ひやま [Hiyama]	PS33		Hitachi, Mukojima			3.1963	deleted 3.1988
つるぎ [Tsurugi]	PS34		Hitachi, Mukojima			3.1963	deleted 3.1988
ろつこう [Rokko]	PS35		Shikoku Zosen			1.1964	deleted 2.1991
たかなわ [Takanawa]	PS36		Hayashikane			1.1964	deleted 1.1990
あきよし [Akiyoshi]	PS37		Hashihama			2.1964	deleted 10.1989
くにみ [Kunimi]	PS38		Hayashikane			2.1965	deleted 1.1994
たかつき [Takatsuki]	PS39		Kurashima			3.1965	deleted 3.1992
かむい [Kamui]	PS41		Hayashikane			2.1966	deleted 1.1994
あしたか [Ashitaka]	PS43		Usuki Tekkojo, Usuki			2.1967	deleted 9.1994
くらま [Kurama]	PS44		Usuki Tekkojo, Usuki			2.1967	deleted 8.1995
いぶき [Ibuki]	PS45		Usuki Tekkojo, Usuki			3.1968	deleted 12.1996
とうみ [Toumi]	PS46		Usuki Tekkojo, Usuki			2.1968	deleted 12.1996
ちとせ [Chitose], 1972- のばる [Nobaru]	PS49		Hitachi, Mukajima			12.1963 // 1972	deleted 3.1988

Technical data

Displacement standard, t	130
Displacement full, t	169
Length, m	33.8
Breadth, m	6.30
Draught, m	1.77
No of shafts	1
Machinery	1 Ikegai 6MSB31S diesel
Power, h. p.	700
Max speed, kts	13.5
Fuel, t	diesel oil
Endurance, nm(kts)	1150(10)
Armament	1 x 1 - 12.7/90
Electronic equipment	radar
Complement	17

Standard scale images

Graphics

Project history

Small patrols of 130t class. Chitose was transferred from Police department of Ryukyu to MSA in 1972.

Modernizations

None.

Naval service

No significant events.
