HAMAGUMO patrol craft (1999-2000)

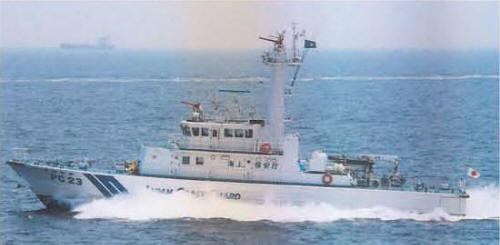

Awanami 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| はまぐも [Hamagumo] | PC22 | Sumidagawa, Tokyo | 2.12.1998 | 16.4.1999 | 27.8.1999 | in service (2019) | |
| あわなみ [Awanami], 2015- あゆづき [Ayuzuki] | PC23 | Sumidagawa, Tokyo | 2.12.1998 | 14.5.1999 | 27.8.1999 | in service (2019) | |
| うらなみ [Uranami], 2015- ゆふぎり [Yufugiri] | PC24 | Sumidagawa, Tokyo | 10.3.1999 | 8.9.1999 | 24.1.2000 | in service (2019) | |
| しきなみ [Shikinami], 2015- ともなみ [Tomonami] | PC25 | Ishihara DY, Takasago | 7.4.2000 | 4.8.2000 | 24.10.2000 | in service (2019) |
Technical data
| Displacement standard, t | 110 |
|---|---|
| Displacement normal, t | 190 |
| Length, m | 26.2 pp 35.0 oa |
| Breadth, m | 6.30 |
| Draught, m | 2.30 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V396 TB94 diesels |
| Power, h. p. | 4000 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 13 |
Graphics
Awanami 2008
Project history
Hayanami class with a tall telescoping mast supporting a firefighting water, monitor, a second monitor atop the pilothouse, and a maximum speed of 24 kts.
Modernizations
None.
Naval service
No significant events.
