DAIO large patrol vessels (1973-1974)

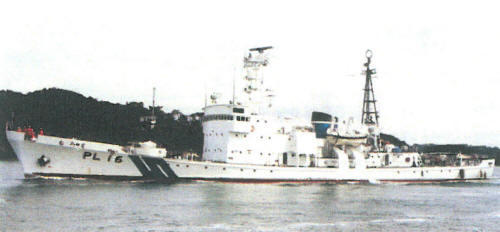

Muroto 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| だいおう [Daio] | PL15 | Hitachi, Maizuru | 18.10.1972 | 19.6.1973 | 28.9.1973 | deleted 8.2001 | |
| むろと [Muroto] | PL16 | Naikai, Innoshima | 15.3.1973 | 5.8.1974 | 30.11.1974 | deleted 1.2005 |
Technical data
| Displacement standard, t | 940 |
|---|---|
| Displacement normal, t | 1206 |
| Length, m | 73.0 pp 76.6 oa |
| Breadth, m | 9.60 |
| Draught, m | 3.18 |
| No of shafts | 2 |
| Machinery | 2 Fuji 8S40B diesels |
| Power, h. p. | 8120 |
| Max speed, kts | 20.4 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4400(18) |
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | JMA 1596, JMA 1576 radars |
| Complement | 45 |
Standard scale images
Daio 1980
Graphics
Muroto 2001
Project history
Enlarged Erimo with more powerful engines.
Modernizations
None.
Naval service
No significant events.
