ASOGIRI patrol craft (1994-1997)





Murozuki 2001

Ships


Name No Yard No Builder Laid down Launched Comp Fate
あそぎり [Asogiri] PC101   Yokohama Yacht 12.5.1994 7.10.1994 19.12.1994 in service (2019)
むろづき [Murozuki] PC102   Ishihara, Takasago 21.9.1994 6.6.1995 27.7.1995 in service (2019)
わかぐも [Wakagumo], 2012- うらづき [Urazuki] PC103   Ishihara, Takasago 11.1.1996 29.3.1996 17.7.1996 in service (2019)
なおづき [Naozuki], 2006- かがゆき [Kagayuki] PC104   Sumidagawa, Tokyo 18.3.1996 14.10.1996 23.1.1997 in service (2019)


Technical data


Displacement standard, t

88

Displacement normal, t

100

Length, m

33.0

Breadth, m

6.30

Draught, m

1.40

No of shafts

2

Machinery

2 MTU 16V396 TB94 diesels

Power, h. p.

5200

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 12.7/90

Electronic equipment

radar, e/o detector

Complement

10



Graphics

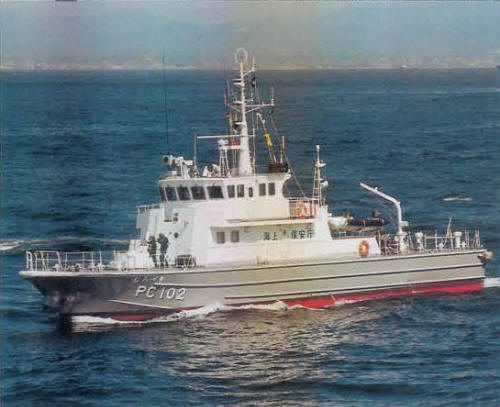

<i>Murozuki </i>2001
Murozuki 2001


Project history

Have IR/TV optronic surveillance system. The machinegun is not normally mounted. Hull sides are painted gray, superstructure is white

Modernizations

None.

Naval service

No significant events.
