ASO large patrol vessels (2005-2006)

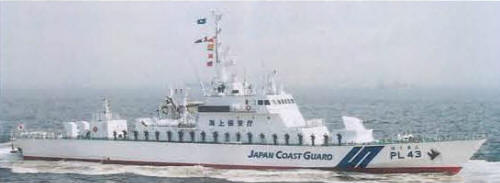

Hakusan 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| あそ [Aso] | PL41 | Mitsubishi, Shimonoseki | 18.12.2003 | 28.10.2004 | 15.3.2005 | in service (2019) | |
| でわ [Dewa] | PL42 | Universal, Keihin | 5.4.2004 | 9.5.2005 | 12.4.2006 | in service (2019) | |
| はくさん [Hakusan] | PL43 | Universal, Keihin | 5.4.2004 | 5.10.2005 | 12.4.2006 | in service (2019) |
Technical data
| Displacement standard, t | 770 |
|---|---|
| Displacement normal, t | 1000 |
| Length, m | 79.0 |
| Breadth, m | 10.0 |
| Draught, m | 4.00 |
| No of shafts | 4 waterjets |
| Machinery | 4 diesels |
| Power, h. p. | |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/60 Mk 3 |
| Electronic equipment | 2x JMA radars |
| Complement |
Standard scale images
Aso 2010
Graphics
Hakusan 2007
Project history
Large fast patrol cutters.
Modernizations
None.
Naval service
No significant events.
