AKIZUKI patrol craft (1974-1983)
Awagiri 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PC64 あきづき [Akizuki] PC65 しののめ [Shinonome] PC72 うらゆき[Urayuki] PC73 いせゆき [Iseyuki] PC75 はたぐも [Hatagumo] PC76 まきぐも [Makigumo] PC77 はまづき [Hamazuki] PC78 いそづき [Isozuki] PC79 しまなみ [Shimanami] PC80 ゆうづき [Yuzuki] PC81 はなゆき [Hanayuki], later- たまなみ [Tamanami] PC82 あわぎり [Awagiri] |
Mitsubishi, Shimonoseki: PC64, 65, 72, 73, 75-82 |
1974: PC64, 65 1975: PC72, 73 1976: PC75-77 1977: PC78, 79 1979: PC80 1981: PC81 1983: PC82 |
none |
none |
1996: PC64, 65 2001: PC73 2012: PC75 2014: PC72, 76-80 2017: PC81, 82 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 77 |
| Length, m | 23.0 pp 26.0 oa |
| Breadth, m | 6.30 |
| Draught, m | 1.10 |
| No of shafts | 3 |
| Machinery | 3 Mitsubishi 12DM 20MTK diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 290(21) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | FRA 10 Mk 2 radar |
| Complement | 10 |
Graphics

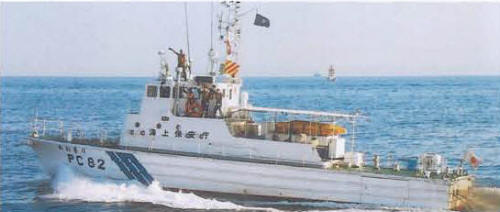

Awagiri 2008
Project history
Aluminium hull.
Modernizations
None.
Naval service
No significant events.
