1-GO fast attack craft (missile) (1993 - 1995)

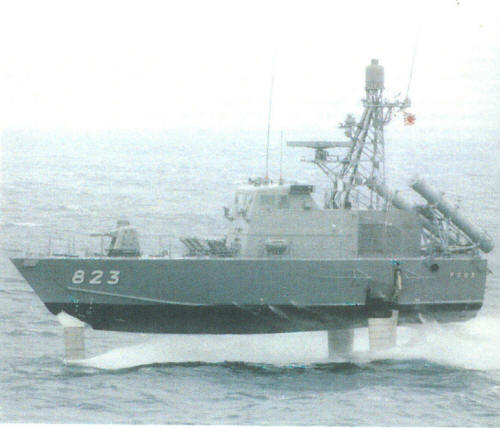

3-go 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PG821 1号 [1-go] PG822 2号 [2-go] PG823 3号 [3-go] |
Sumitomo, Uraga: PG821-823 |
3/1993: PG821, 822 3/1995: PG823 |
none |
none |
6/2008: PG821, 822 6/2010: PG823 |
Technical data
| Displacement standard, t | 50 |
|---|---|
| Displacement full, t | 63 |
| Length, m | 23.0 hull 24.6 hullborne |
| Breadth, m | 12.1 foils 7.01 hull |
| Draught, m | 1.87 hull 4.37 foils extended |
| No of shafts | 1 + 1 waterjet |
| Machinery | CODOG: 1 Isuzu 6BD1TC diesel (1 propeller) / 1 General Motors LM-500 gas turbine (1 waterjet) |
| Power, h. p. | 180 / 5200 |
| Max speed, kts | 46 |
| Fuel, t | diesel / gas turbine oil |
| Endurance, nm(kts) | 400(40) |
| Armament | 2 x 2 SSM-1B SSM (4 SSM-1B), 1 x 3 - 20/76 JM-61-MB Sea Vulcan |
| Electronic equipment | OPS-18, OPS-20 radars, NOLR-9 ECM suite, 2x Mk 36 SRBOC decoy RL, OYQ-8 CCS |
| Complement | 11 |
Graphics
3-go 2003
2-go 2006
Project history
Licensed-built Italian Sparviero design with Japanese equipment.
Modernizations
None.
Naval service
No significant events.
