19-GO patrol boats (1971 - 1973)

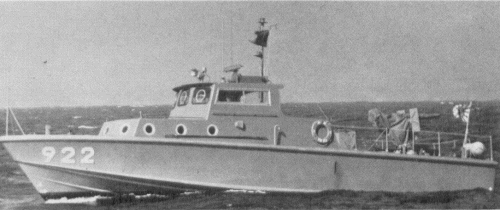

22-go 1975
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PB919 19号 [19-go] PB920 20号 [20-go] PB921 21号 [21-go] PB922 22号 [22-go] PB923 23号 [23-go] PB924 24号 [24-go] PB925 25号 [25-go] PB926 26号 [26-go] PB927 27号 [27-go] |
IHI, Yokohama: PB919-927 |
1971: PB919-922 1972: PB923, 924 1973: PB925-927 |
none |
none |
1992: PB919-922 1994: PB923, 924 1998: PB925, 926 1999: PB927 |
Technical data
| Displacement standard, t | 18 |
|---|---|
| Displacement full, t | 20 |
| Length, m | 17.0 |
| Breadth, m | 4.30 |
| Draught, m | 0.70 |
| No of shafts | 2 |
| Machinery | 2 Isuzu V170T-MF8RC diesels |
| Power, h. p. | 760 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) |
|
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | PB920-927: OPS-29 radar |
| Complement | 6 |
Graphics
22-go 1975
Project history
GRP hull.
Modernizations
1986, all: + 1 x 1 - 12.7/90
Naval service
No significant events.
