SUMA river gunboat (1916 / 1942)





Suma Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
須磨 [Suma] (ex-Moth)   295 Sunderland SB, UK   9.10.1915 1916 // 7.1942 sunk 19.3.1945


Technical data


Displacement normal, t625
Displacement full, t750
Length, m

70.1 pp 72.4 oa

Breadth, m

11.0

Draught, m

1.20

No of shafts

2

Machinery

2 VTE, 2 Yarrow boilers

Power, h. p.

2000

Max speed, kts

14

Fuel, tcoal 35 + oil 65
Endurance, nm(kts)
Armament

2 x 1 - 152/45 BL Mk VII, 1 x 1 - 76/40 12pdr 12cwt QF Mk I/II

Complement55


Standard scale images

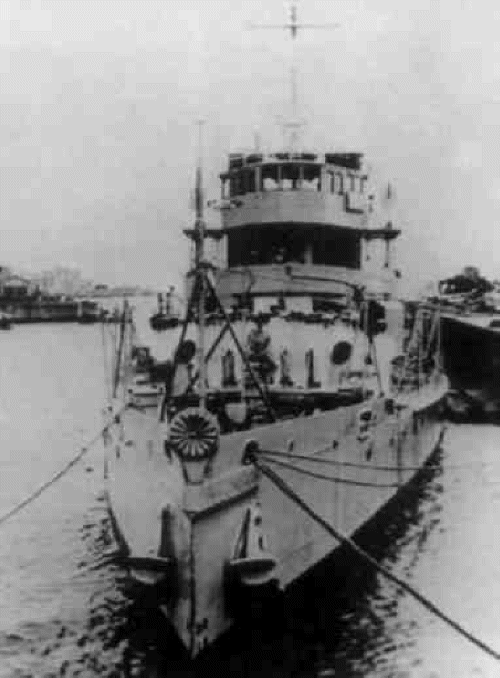

<i>Suma</i> 1945
Suma 1945


Graphics


<i> Suma</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Suma Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

British river gunboat Moth was scuttled by own crew 12.12.1941 at Hong Kong, salvaged by Japanese and after repair was commissioned by IJN 1.7.1942 as Suma.

Modernizations

None.

Naval service

Suma was mined and has sunk 19.3.1945 near Kiangying on Yangtze.
