NOTORO seaplane tenders (1922, 1920 / 1924)





Notoro

Ships


Name No Yard No Builder Laid down Launched Comp Fate
能登呂 [Notoro]     Kawasaki, Kobe 11.1919 3.5.1920 8.1920 // 1924 tanker late1942
鶴見 [Tsurumi]     Osaka IWks 3.1921 29.9.1921 3.1922 // 1924 tanker 1931


Technical data


Displacement standard, t14050
Displacement full, t
Length, m

138.9 pp

Breadth, m

17.7

Draught, m

8.08

No of shafts2
Machinery2 VTE, 4 Miyabara boilers
Power, h. p.

5850

Max speed, kts

12

Fuel, toil 1000
Armament

2 x 1 - 120/45 3-shiki, 2 x 1 - 76/40 3-shiki, 10 seaplanes (W.33)

Complement155


Graphics

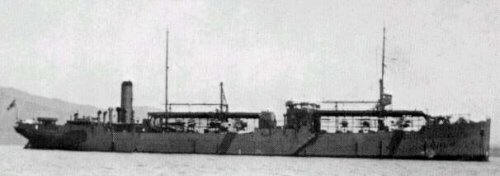

<i> Notoro</i>
Notoro


Aircraft facilities

Aircraft based on deck.

Project history

Former tanker vessel of Shiretoko class. Seaplanes carried on upper deck and handled from and to water by cargo booms.

Modernizations

None.

Naval service

No significant events.
