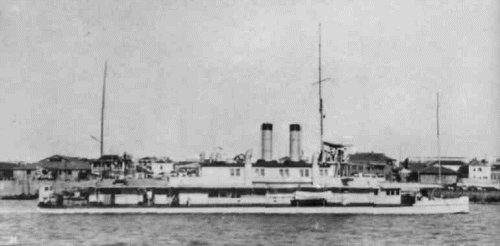

Fushimi

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
伏見 [Fushimi]		1141	Yarrow, Scotstoun, UK / Kawasaki, Shanghai	1903	5.8.1906	12.1906	stricken 1935

Technical data

Displacement normal, t	180
Displacement full, t
Length, m	48.7 pp
Breadth, m	7.39
Draught, m	0.69
No of shafts
Machinery	2 VTE, 2 Yarrow boilers
Power, h. p.	900
Max speed, kts	14
Fuel, t	coal 25
Endurance, nm(kts)
Armament	2 x 1 - 57/40 6pdr Hotchkiss Mk I, 3 x 1 - 6.5/115
Complement	45

Standard scale images

Graphics

Project history

Specially intended for service on China rivers, built under the 1896-1897 program. Fushimi has been built in Britain and assembled in Far East from ready sections from October, 1906.

Modernizations

None.

Naval service Based at Shanghai and served till 1935, then have been handed over on demolition.

Based at Shanghai and served till 1935, then have been handed over on demolition.
