CORNWALL patrol craft (2005-2017)





Surrey on trials 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Cornwall 421   Damen, Gorinchem, Netherlands     27.10.2005 stricken 11.2016
Middlesex 422   Damen, Gorinchem, Netherlands     7.4.2006 stricken 11.2016
Surrey 423   Damen, Gorinchem, Netherlands     26.6.2006 stricken 11.2016
Cornwall 421   Damen, Gorinchem, Netherlands     16.1.2017 in service (2020)
Middlesex 422   Damen, Gorinchem, Netherlands     16.1.2017 in service (2020)


Technical data


Displacement standard, t
Displacement full, t

205
Length, m

40.0 pp 42.8 oa
Breadth, m

7.11
Draught, m

2.52
No of shafts2
Machinery

2 Caterpillar 3516B DITA diesels
Power, h. p.

5715
Max speed, kts

26
Fuel, t

diesel oil
Endurance, nm(kts)

1800(12)
Armament

2 x 1 - 12.7/90
Electronic equipment

2x JRC radars
Complement

12


Standard scale images


<i>Cornwall </i>2010
Cornwall 2010


Graphics

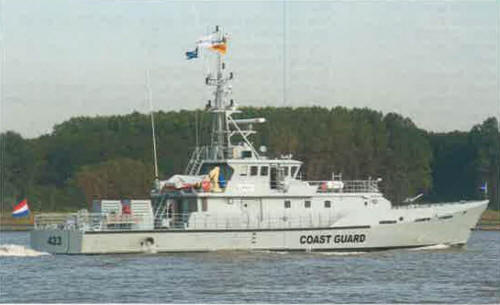

<i>Surrey </i>on trials 2006
Surrey on trials 2006


Project history

Damen Stan Patrol 4207 design. Three craft purchased in 2005-2006, poorly maintained and being in the very poor condition, were given to the builder, and in return Damen sent two new ships.

Modernizations

None.

Naval service

No significant events.
