CG131 patrol launches (2003)
CG131 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CG131-133 |
Silver Ships, Mobile, USA: CG131-133 |
2003: CG131-133 |
None |
None |
in service (2020): CG131-133 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 11 |
| Length, m | 13.4 |
| Breadth, m | 3.20 |
| Draught, m | 0.90 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3196 diesels |
| Power, h. p. | 1140 |
| Max speed, kts | 37 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(20) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Raytheon Pathfinder radar |
| Complement | 6 |
Graphics

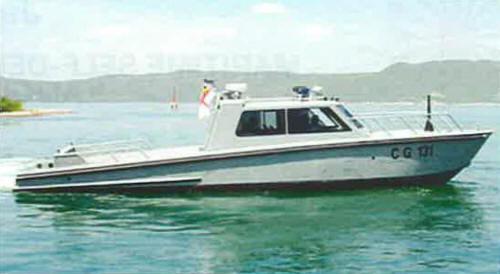

CG131 2003
Project history
Aluminium construction.
Modernizations
None.
Naval service
No significant events.
