ANDREA PROVANA medium submarines (1918 - 1919)

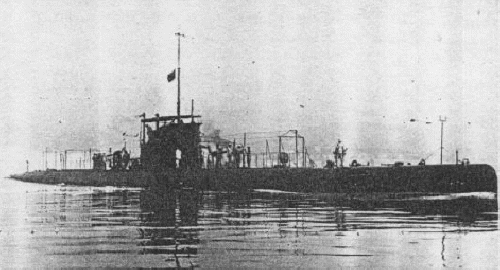

Andrea Provana 1918

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Andrea Provana     Fiat - San Giorgio, La Spezia 10.1915 27.1.1918 9.1918 stricken 1.1928
Agostino Barbarigo     Fiat - San Giorgio, La Spezia 10.1915 18.11.1917 9.1918 stricken 5.1928
Giacomo Nani     Fiat - San Giorgio, La Spezia 10.1915 8.9.1918 8.1919 stricken 8.1935
Sebastiano Veniero     Fiat - San Giorgio, La Spezia 10.1915 7.7.1918 4.1919 collision 6.8.1925


Technical data


Displacement standard, t709
Displacement normal, t

762 / 924
Length, m

67.0
Breadth, m

5.90
Draught, m

3.81
No of shafts

2
Machinery

2 Fiat diesels / 2 Ansaldo electric motors
Power, h. p.

2600 / 1400
Max speed, kts

16 / 9.8
Fuel, t

diesel oil
Endurance, nm(kts)2070(11.6) / 260(2)
Armament

2 x 1 - 76/40 A1916, 6 - 450 TT (4 bow, 2 stern, 8)
Complement

40
Diving depth operational, m50


Standard scale images


<i>Agostino Barbarigo</i> 1918
Agostino Barbarigo 1918


Graphics


<i>Andrea Provana</i> 1918
Andrea Provana 1918


Project history

All were commissioned after Armistice. Submarines had progressive enough construction (in particular, batteries have been arranged for the first time in four separated compartments under a main deck), differed by easy manoeuvrability, but diving depth was limited.

Modernizations

None.

Naval service

Sebastian Vegniero was lost 6.8.1925 as result of collision with Italian merchant s/s Capena.
