PIETRO MICCA large submarines (1918 - 1920)





Angelo Emo

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Angelo Emo     R. Arsenale di Venezia 6.1914 --- --- cancelled 2.1916
Lorenzo Marcello     R. Arsenale di Venezia 6.1914 --- --- cancelled 2.1916
Lazzaro Mocenigo     R. Arsenale di Venezia 6.1914 --- --- cancelled 2.1916
Pietro Micca     R. Arsenale di La Spezia 9.1915 3.6.1917 8.1918 stricken 6.1930
Angelo Emo     R. Arsenale di La Spezia 2.1916 23.2.1919 1919 stricken 10.1930
Luigi Galvani     R. Arsenale di La Spezia 9.1915 26.1.1918 6.1918 stricken 1.1938
Lorenzo Marcello     R. Arsenale di La Spezia 2.1916 29.9.1918 1919 stricken 1.1928
Lazzaro Mocenigo     R. Arsenale di La Spezia 2.1916 26.7.1919 1920 stricken 4.1937
Torricelli     R. Arsenale di La Spezia 9.1915 16.6.1918 9.1918 stricken 10.1930


Technical data


Displacement standard, t779
Displacement normal, t

842 / 1244

Length, m

63.2

Breadth, m

6.20

Draught, m

4.27

No of shafts

2

Machinery

2 Fiat diesels / 2 Ansaldo or Savigliano electric motors

Torricelli: 2 Tosi diesels / 2 Ansaldo or Savigliano electric motors

Power, h. p.

2600 - 2900 / 1300 - 1800

Max speed, kts

11 / 10.9

Fuel, t

diesel oil 60

Endurance, nm(kts)945(11) / 94(5)
Armament

1 x 1 - 76/40 A1916, 1 x 1 - 76/30 A1914, 6 - 450 TT (4 bow, 2 stern, 8)

Complement

40

Diving depth operational, m50


Standard scale images


<i>Lazzaro Mocenigo</i> 1920
Lazzaro Mocenigo 1920


Graphics

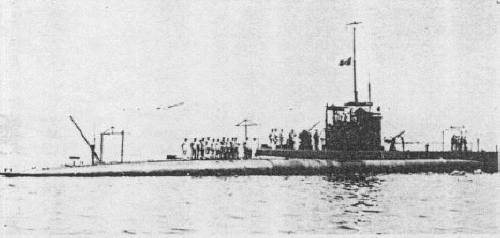

<i> Angelo Emo</i>
Angelo Emo


Project history

Largest Italian submarines of WWI-era. They were ordered to La Spezia NYd in 1914, but owing to delayed building no any submarine was completed before war end. Unreliable engines and bad manoeuvrability have called their major refit in 1923. There was also twin deck TT mount in the project, really it was never installed.

Modernizations

1923, all: partially rebuilt.

Naval service

No significant events.
