BRONDOLO small gunboats (1909)





Marghera pre-war

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Brondolo     Arsenale di Venezia 1.1908 4.12.1909 12.1909 minelayer 7.1921, discarded 7.1934
Marghera (ex-Malghera)     Arsenale di Venezia 1.1908 29.3.1909 7.1909 minelayer 7.1921, discarded 9.1934


Technical data


Displacement normal, t113 - 117
Displacement full, t
Length, m

38.1

Breadth, m

6.32

Draught, m

0.74 - 0.77

No of shafts

2

Machinery

2 VTE, 1 boiler

Power, h. p.

500

Max speed, kts

12.7 - 13

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 1 - 76/40 A, mines

Complement

18



Standard scale images


<i>Brondolo</i> 1910
Brondolo 1910


Graphics

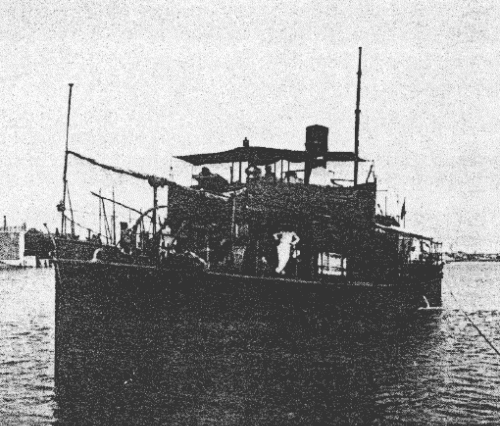

<i>Marghera </i>pre-war
Marghera pre-war


Project history

Coastal shallow-draught gunboats for actions in lagoons. Both were re-classified as minelayers in 1921.

Modernizations

None.

Naval service

No significant events.
