PAOLO THAON DI REVEL frigates
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Paolo Thaon di Revel | P430 | 6261 | Fincantieri, Muggiano | 9.5.2017 | 15.6.2019 | 2021 | building (2019) |
| Francesco Morosini | P431 | 6262 | Fincantieri, Muggiano | 3.10.2017 | 2020 | 2022 | building (2019) |
| PPA3 | 6263 | Fincantieri, Muggiano | 8.11.2018 | 2021 | 2023 | building (2019) | |
| PPA4 | 6264 | Fincantieri, Muggiano | 22.3.2019 | 2022 | 2024 | building (2019) | |
| PPA5 | 6265 | Fincantieri, Muggiano | 2020 | 2023 | 2025 | ordered (2019) | |
| PPA6 | 6266 | Fincantieri, Muggiano | 2021 | 2024 | 2026 | ordered (2019) | |
| PPA7 | 6267 | Fincantieri, Muggiano | 2022 | 2025 | 2027 | ordered (2019) | |
| PPA8 | planned (2019) | ||||||
| PPA9 | planned (2019) | ||||||
| PPA10 | planned (2019) |
Technical data
| Displacement standard, t | F599, PPA2, 9: 4880 PPA3, 5, 6, 10: 4912 PPA4, 7, 8: 4994 |
|---|---|
| Displacement full, t | F599, PPA2, 9: 6270 PPA3, 5, 6, 10: 6300 PPA4, 7, 8: 6400 |
| Length, m | 133.0 pp 143.0 oa |
| Breadth, m | 16.5 |
| Draught, m | 5.00 |
| No of shafts | 2 |
| Machinery | CODDLAG: 1 General Electric / Avio LM-2500+G4 gas turbine + 2 MTU 20V8000 M91L diesels / 4 MAN 12V175D-MEM diesel-generators, 2 electric motors |
| Power, h. p. | 43000+26000=69000 / 5000 |
| Max speed, kts | 31.6 |
| Fuel, t | diesel / gas turbine oil |
| Endurance, nm(kts) | 5000(15) |
| Armament | P430, 431, PPA9: 2 x 8 Sylver A70 CruM / SAM (VLS, 16 Aster-15 SAM) (fitted for), 2 x 4 Teseo SSM (8 Otomat Mk 2A Evolutio) (fitted for), 1 x 1 - 127/64 OTO-Melara LW Vulcano, 1 x 1 - 76/62 OTO-Melara Compact SR Strales, 2 x 1 - 25/80 KBA-B06, 2 - 533 TT, 1 - 2 helicopters (1 AW101 or 2 NH90) PPA3, 5, 6, 10: 2 x 8 Sylver A70 CruM / SAM (VLS, 16 Aster-15 SAM / Aster-30 SAM), 2 x 4 Teseo SSM (8 Otomat Mk 2A Evolutio) (fitted for), 1 x 1 - 127/64 OTO-Melara LW Vulcano, 1 x 1 - 76/62 OTO-Melara Compact SR Strales, 2 x 1 - 25/80 KBA-B06, 2 - 533 TT, 2 x 3 - 324 B-515/3 TT (6 Black Arrow), 1 - 2 helicopters (1 AW101 or 2 NH90) PPA4, 7, 8: 2 x 8 Sylver A70 CruM / SAM (VLS, 16 Aster-15 SAM / Aster-30 / Aster-30 Block 1NT SAM / Scalp CruM), 2 x 4 Teseo SSM (8 Otomat Mk 2A Evolutio), 1 x 1 - 127/64 OTO-Melara LW Vulcano, 1 x 1 - 76/62 OTO-Melara Compact SR Strales, 2 x 1 - 25/80 KBA-B06, 2 - 533 TT, 2 x 3 - 324 B-515/3 TT (6 Black Arrow), 1 - 2 helicopters (1 AW101 or 2 NH90) |
| Electronic equipment | F599, PPA2, 9: AESA 3D (X-band), SPS-732, 2x nav. radars, IRST e/o system, ATAS, diver detection sonars, ZEUS, RESM, RECM, CESM ECM suites, 2x ODLS-20 decoy RL (fitted for), 2x MS-424 torpedo decoy launchers, SADOC Mk 4 CCS PPA3, 5, 6, 10: AESA 3D (C-band), SPS-732, 2x nav. radars, IRST e/o system, ATAS, diver detection sonars, ZEUS, RESM, RECM, CESM ECM suites, 2x ODLS-20 decoy RL (fitted for), 2x MS-424 torpedo decoy launchers, SADOC Mk 4 CCS PPA4, 7, 8: AESA 3D (C, X-band), SPS-732, 2x nav. radars, IRST e/o system, ATAS, Black Snake, diver detection sonars, ZEUS, RESM, RECM, CESM ECM suites, 2x ODLS-20 decoy RL, 2x MS-424 torpedo decoy launchers, SADOC Mk 4 CCS |
| Complement | F599, PPA2, 9: 114 PPA3, 5, 6, 10: ~124 PPA4, 7, 8: 173 |

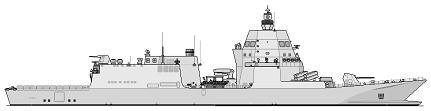

Standard scale images
PPA4
Project history
PPA = Patrugliatore Polivalente d'Altura (alternative multimission patrol). 10 ships planned for replacement of old corvettes of Minerva and Cassiopea classes. Large ships, with frigate/destroyer displacement. There are three versions: Light (Nos 1, 2 and 9 ships), Light+ (Nos 3, 5, 6, 10) and Full (Nos 4, 7, 8), differed by armament and electronic equipment. 6 first ships were ordered 7.5.2015, seventh 11.11.2015. 11m RIB can launch via stern ramp, 2 15m LCVPs are carried on the davits. There is the area for 13 containers for additional equipment in two mission bays. Containers can be handled by 20t crane.
Modernizations
None.
Naval service
No significant events.
