Scirocco 1991

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Maestrale	F570		CNR, Riva Trigoso	8.3.1978	2.2.1981	7.3.1982	stricken 12.2015
Grecale	F571		CNR, Muggiano	21.3.1979	12.9.1981	5.2.1983	in service (2019)
Libeccio	F572		CNR, Riva Trigoso	1.8.1979	7.9.1981	5.2.1983	in service (2019)
Scirocco	F573		CNR, Riva Trigoso	26.2.1980	17.4.1982	20.9.1983	in service (2019)
Aliseo	F574		CNR, Riva Trigoso	10.8.1980	29.10.1982	20.9.1983	stricken 9.2017
Euro	F575		CNR, Riva Trigoso	15.4.1981	25.3.1983	7.4.1984	stricken 7.2018
Espero	F576		CNR, Riva Trigoso	29.7.1982	19.11.1983	4.5.1985	stricken 12.2018
Zeffiro	F577		CNR, Riva Trigoso	15.3.1983	19.5.1984	4.5.1985	in service (2019)

Technical data

Displacement standard, t	2700
Displacement full, t	3200
Length, m	116.4 pp 122.7 oa
Breadth, m	12.9
Draught, m	4.10 hull 5.95 max
No of shafts	2
Machinery	CODOG: 2 General Electric-Fiat LM-2500 gas turbines / 2 GMT B230-20DV diesels
Power, h. p.	50000 / 11000
Max speed, kts	32
Fuel, t	diesel / gas turbine oil
Endurance, nm(kts)	6000(15)
Armament	4 x 1 Teseo Mk 2 SSM (4 Otomat Mk 2), 1 x 8 Albatros SAM (24 Aspide), 1 x 1 - 127/54 OTO-Melara, 2 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 - 533 B-516 TT (8), 2 x 3 - 324 Ilas 3 TT (12), 2 helicopters (AB-212ASW)
Electronic equipment	SPN-703, SPS-702, SPS-774, SPG-75, 2x SPG-74 radars, DE-1164 sonar suite (hull mounted + VDS), SLR-4 Newton, 2x SLQ-D ECM suites, 2x SCLAR decoy RL, SLQ-25 Nixie torpedo decoy, SADOC-2 (IPN-20) CCS
Complement	225

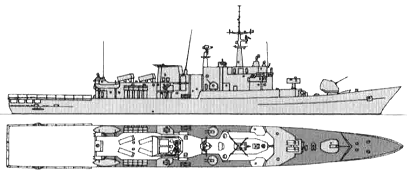

Standard scale images

Graphics

Project history

This is a modified Lupo design, about 10% larger, for better sea-keeping at the coast of about 2.5kts in calm water. Hangar space for two helicopters was bought by halving the number of Otomat missiles. The SAM system is Albatros with a mechanized reloader; the Sea Sparrow of the earlier Lupo has no means of power reloading, and whatever extra missiles were carried must be brought up from below by hand. Unlike the Lupos they have a VDS to supplement their hull sonar (DE-1164 rather than the DE-1160B of the Lupo) The VDS tow cable is to be lengthened from 600m to 900m, and a passive array streamed from the VDS 'fish', as in the USN SQR-18 system (Maestrale ran trials in 1989). Note that, unlike a Lupo, Maestrale carries a pair of stern tubes for large-calibre torpedoes (A-184) in addition to her lightweight weapons. To some extent these torpedoes must make up for the loss of the four Otomats.

Modernizations

1991, Grecale: - 2x SCLAR decoy RL; + 2x Dagaie decoy RL

1994, all: DE-1164 sonar was modernized

2007, Scirocco, Zeffiro; 2009, Grecale, Libeccio: - 4 x 1 Teseo Mk 2 SSM, SPS-774, SPN-703 radars; + 4 x 1 Milas ASuM (4 Milas), SPS-794, SPN-753 radars, SASS IR e/o detector

Naval service

No significant events.
