ANDREA DORIA missile destroyers (2008-2009)





Caio Duilio 2008

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Andrea Doria (ex-Carlo Bergamini) D553   Fincantieri, Riva Trigoso 19.7.2002 14.10.2005 22.12.2008 in service (2019)
Caio Duilio D554   Fincantieri, Riva Trigoso 19.9.2003 25.10.2007 3.4.2009 in service (2019)


Technical data


Displacement standard, t

5600

Displacement full, t

7050

Length, m

141.7 pp 152.9 oa

Breadth, m

17.9 wl 20.3 oa

Draught, m

5.40 mean hull 8.00 max

No of shafts

2

Machinery

CODOG: 2 General Electric-Fiat LM-2500 gas turbines / 2 SEMT-Pielstick 12 PA6B STC diesels

Power, h. p.

56000 / 11750

Max speed, kts

29

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)7000(18)
Armament

2 x 4 Teseo Mk 2 SSM (8 Otomat Mk 2), 6 x 8 Sylver A50 SAM (32 Aster-30, 16 Aster-15), 3 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 25/87 KBA25/80, 2 - 324 B-515/3 TT (19 MU-90), 1 helicopter (AW-101 or NH90)

Electronic equipment

S1850M, SPY-790 EMPAR, 2x SPN-753, 2x NA-25XP, SPS-791 radars, DIBV-2A e/o detector, MFS-4110 sonar, JANEWS, 2x JASS ECM suites, 2x SCLAR-H decoy RL, 2x SLAT anti-torpedo systems, SEIC CCS

Complement

200



Standard scale images

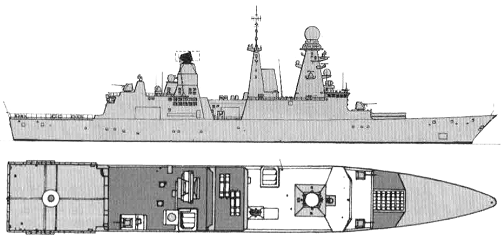

<i>Andrea Doria </i>2010
Andrea Doria 2010


Graphics

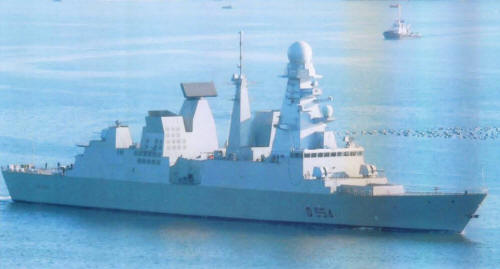

<i>Caio Duilio </i>2008
Caio Duilio 2008


Project history

Are the result of a 1991 agreement made with France and the United Kingdom to design a ship acceptable to all three navies. An international joint-venture corporation, Horizon Ltd., was established in 1995 to build at least the initial units of the class for the three partner countries by the three prime contractors, GEC-Marconi. DCN International, and Orizzonte SpA. Italy originally planned to buy six ships, then four, to replace the Audace class destroyers and the two already-stricken Andrea Doria class cruisers. The program was reduced to two during 1993 because of the expense incurred in the purchase of the ex-Iraqi Lupo class frigates. The British pullout from the program in 1999 put the program in temporary limbo, but France and Italy agreed in 1999 to continue, and the first two were ordered 26.11.2000. France has built two similar ships as the Forbin class.

When carried, the 8 Teseo Mk 2 SSM are fitted in two quad launchers amidships. The class is fitted with the TC-ASIST helicopter landing system, and in addition to general utility duties, the helicopter can be used for ASW and for attacking surface ships with missiles. The 76mm mounts are installed two abreast forward and one atop the helicopter hangar. Fitted with the Vampir MB (Modular Bispectral) IR detection and tracking system.

Modernizations

None.

Naval service

No significant events.
