GIOVANNI BAUSAN protected cruiser (1885)

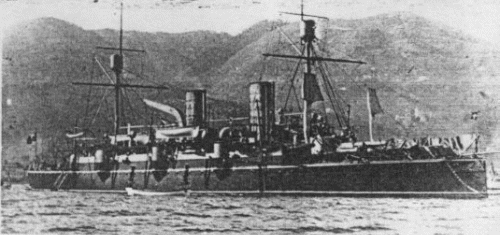

Giovanni Bausan 1889

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Giovanni Bausan     Armstrong, Elswick, UK 21.8.1882 15.12.1883 9.5.1885 depot ship 7.1916


Technical data


Displacement normal, t

3079

Displacement full, t

3277

Length, m

84.1 pp 89.3 oa

Breadth, m

12.9

Draught, m

5.98

No of shafts

2

Machinery

2 VDE, 4 cylindrical boilers

Power, h. p.

6470

Max speed, kts

17.4

Fuel, t

coal 560

Endurance, nm(kts)5000(10)
Armour, mmcompound; deck: 38, CT: 13
Armament

2 x 1 - 254/30 B, 6 x 1 - 152/33 A, 4 x 1 - 57/40 H, 3 x 1 - 37/20 H corto, 6 x 5 - 37/20 H corto, 2 x 1 - 11.4/94, 2 - 350 TT (beam)

Complement

295



Standard scale images


<i>Giovanni Bausan</i> 1885
Giovanni Bausan 1885


Graphics


<i>Giovanni Bausan </i>1889
Giovanni Bausan 1889


Project history

This vessel, the first torpedo ram of the Italian Navy, was designed by George Rendel and was officially classed as an ariete-torpediniere. She was steel-hulled and was originally provided with a 2-masted fore and aft rig.

Ship protection

There was thin sloping protective deck.

Modernizations

1899: - 6 x 1 - 152/33; + 6 x 1 - 152/40 A91

1915: - 2 x 1 - 254/30, 2 x 1 - 152/40

Naval service

After 1913 Giovanni Bausan was employed as a distilling ship at Tobruk, and later also as a headquarters for the Tobruk Naval Commander. In 1915 she was partly disarmed, and later disarmed totally. From 1.7.1916 she was a submarine depot ship at Brindisi. She was discarded in January 1920 and sold for scrap in March 1920.
