ANTONIO ZARA patrol craft (1990)

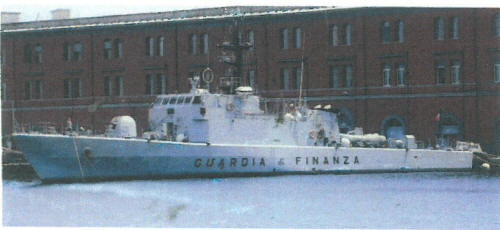

Antonio Zara 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Antonio Zara | P01 | Fincantieri, Muggiano | 22.4.1989 | 23.2.1990 | discarded 2008 | ||
| Giuseppe Vizzari | P02 | Fincantieri, Muggiano | 31.5.1988 | 25.11.1989 | 27.4.1990 | discarded 2008 |
Technical data
| Displacement standard, t | 320 |
|---|---|
| Displacement full, t | 335 |
| Length, m | 47.3 pp 51.0 oa |
| Breadth, m | 7.50 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | 2 GMT BL230-12 diesels |
| Power, h. p. | 6600 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2700(15) |
| Armament | 1 x 2 -30/82 OTO-Breda, 2 x 1 - 7.6/90 |
| Electronic equipment | SPN-748, SPN-751 radars, 2x CSDA-10 e/o directors, IPN-10 CCS |
| Complement | 32 |
Standard scale images
Antonio Zara 1990
Graphics
Antonio Zara 2001
Project history
Design based on builder's Ratcharit class for Thailand, but with a less powerful propulsion plant and lighter armament.
Modernizations
None.
Naval service
No significant events.
