"VAS type 2" motor ASW boats (VAS231) (1942 - 1943)

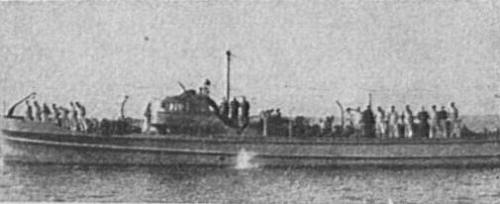

VAS205

Ships


Names Builders Completed Losses Transfers Discarding

VAS231; VAS232

VAS233, 1949- P482 VAS722, 1952- VAS495

VAS234

VAS235, 1949- P483 VAS723

VAS236

VAS237, 1949- P484 VAS724, 1952- VAS496

VAS238; VAS239

VAS240, 1949- P485 VAS725

VAS241, 1949- P486 VAS726, 1952- VAS497

VAS242 - 248

Baglietto, Varazze: VAS231 - 236

Picchiotti, Limite sull`Arno: VAS237, 238

Navalmeccanica, Castellamare di Stabia: VAS239 - 245

Celli, Venezia: VAS246 - 248

1942: VAS231 - 233, 237, 238

1943: VAS234 - 236, 239 - 241, 244 - 248

lost incomplete: VAS242 (13.9.1943 German RA267), VAS243 (13.9.1943 German RA268)

VAS231 (7.5.1943), VAS232 (17.9.1943), VAS234 (9.9.1943), VAS236 (9.9.1943, later German RA261), VAS238 (9.9.1943), VAS239 (9.9.1943 German RA262), VAS244 (9.9.1943), VAS246 (21.8.1947), VAS247 (10.9.1943)

Soviet Union 6.1949: VAS245 (СК-748 [SK-748]), VAS248 (СК-750 [SK-750])

1953: VAS495, 723, 725

1957: VAS496, 726


Technical data


Displacement standard, t
Displacement full, t68.5
Length, m

28.0
Breadth, m

4.70
Draught, m

1.33
No of shafts

3
Machinery

1 Isotta Fraschini petrol engine + 2 Carraro petrol engines
Power, h. p.

1150 + 600 = 1750
Max speed, kts

16 + 14 = 21.5
Fuel, t

petrol 11.5
Armament

VAS231 - 236: 2 x 1 - 20/65 Breda 1940, 2 x 2 - 8.80, mechanical minesweeping gear

VAS237 - 248: 2 x 1 - 20/65 Breda 1940, 2 x 2 - 8.80, 2 - 450 TT, 30 DC
Electronic equipmentVAS237-248: hydrophone
Complement

26


Standard scale images


<i>VAS239</i> 1943
VAS239 1943


Graphics


<i>VAS205</i>
VAS205
<i>VAS233 </i>1943
VAS233 1943


Project history

Almost exact repetition of anti-submarine boats of I type, but with other machinery. On a centre shaft 1150hp Isotta-Fraschini engine was installed, side shafts were driven by 300hp Carraro engines. Boats reached 16kts under only the central shaft, 14kts under side shafts and 21.5kts when all engines ran. Composite hull. VAS231-236 were arranged for minesweeping.

Modernizations

1946, all survived: - 30 DC; + mechanical minesweeping gear.

Naval service

VAS240 and 241 were captured by Germans in September 1943 as RA265 and RA266 respectively and returned in 1945.
