"Baglietto velocissimo" type motor torpedo boats (MAS526) (1939 - 1941)

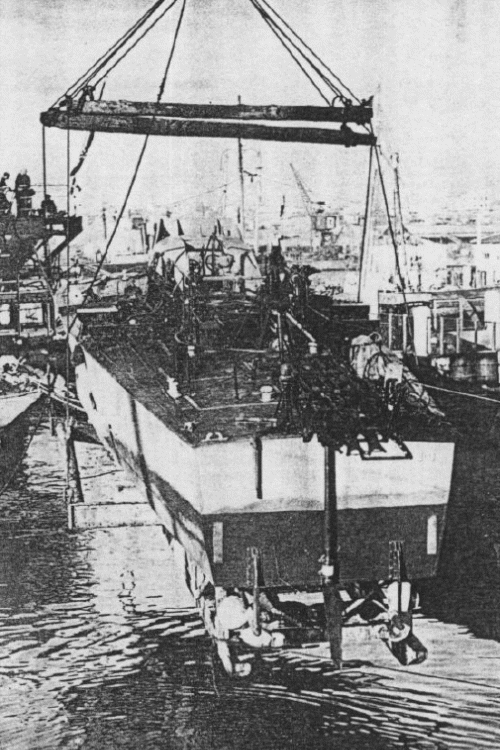

MAS539 1941
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MAS526 - 537 MAS538, 1946- ME B5, 1947- MAS5 MAS539 MAS540, 1944- MAS MT540 MAS541 - 544 MAS545, 1944- MAS MT545, 1946- ME B6, 1947- MAS6 MAS546 MAS547, 1946- ME B7, 1947- MAS7 MAS548 - 551 |
Baglietto, Varazze: MAS526 - 535 Picchiotti, Limite sull`Arno: MAS536 - 539, 545 Celli, Venezia: MAS540 - 544 CRDA, Monfalcone: MAS546 - 551 |
3 - 12.1939: MAS526 - 550 1941: MAS551 |
MAS530 (31.3.1943), MAS531 (9.9.1943 to RSI, sunk 11.12.1944), MAS532 (31.3.1943), MAS533 (6.4.1943), MAS534 (26.9.1939), MAS535 (15.7.1943), MAS536 (7.7.1943), MAS537 (4.9.1940), MAS539 (11.6.1943), MAS541 (22.3.1944), MAS542 (9.9.1943 German S601), MAS544 (16.9.1943), MAS546 (21.2.1944), MAS548 (15.7.1943), MAS549 (9.9.1943 German S509), MAS550 (9.9.1943 German S622), MAS551 (16.9.1943 German S510) |
Finland 6.1943: MAS526 - 529 (J1 - 4) France 9.1949: MAS543 (V782) |
11/1949: MAS MT540 7/1950: MAS5 - 7 |
Technical data
| Displacement standard, t | MAS526 - 535: 25.6 MAS536 - 549, 551: 26 MAS550: 21 |
|---|---|
| Displacement full, t |
|
| Length, m | 18.7 |
| Breadth, m | MAS526 - 549, 551: 4.70 MAS550: 4.50 |
| Draught, m | MAS526 - 549, 551: 1.50 MAS550: 1.30 |
| No of shafts | 2 |
| Machinery | 2 Isotta Fraschini petrol engines / 2 Alfa Romeo or Cararo cruising petrol engines |
| Power, h. p. | 2000 / 140 or 100 |
| Max speed, kts | MAS526 - 535: 41.8 / 6 MAS536 - 549, 551: 42 / 6 MAS550: 45 / 6 |
| Fuel, t | petrol 1.25 |
| Endurance, nm(kts) | 360(42) |
| Armament | 1 x 1 - 13.2/76, 2 - 450 TT, 6 DC |
| Electronic equipment | presumably hydrophone |
| Complement | 10 |
Standard scale images
MAS526 1939
Graphics
MAS539 1941
Project history
Type "Baglietto class 500, 2nd series": lengthened version of 1st series. In addition to main Isotta-Fraschini engines they had 2 70hp Alpfa-Romeo or 50hp Carraro petrol engines for cruising. Endurance under cruising motors was 1100(6)nm. One boat of series, MAS550, was metal-hulled instead of wooden sister-boats and was a little bit less at the expense of what she had higher speed.
Modernizations
1940 - 1941, many boats with 13.2/76 MG: - 1 x 1 - 13.2/76; + 1 x 1 - 20/65 Breda 1939
1944, MAS MT540, 545: - 1 x 1 - 13.2/76, 2 - 450 TT, 6 DC; + 3 x 1 - 20/65 Breda 1940
1946, ME B5, 7: - 2 - 450 TT, 6 DC
1947, MAS5, 7: + 2 - 450 TT, 6 DC
1947, MAS6: - 2 x 1 - 20/65; + 2 - 450 TT, 6 DC
Naval service
No significant events.
