"Baglietto velocissimo" type motor torpedo boats (MAS451) (1941)
MAS451 1941
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MAS451, 452 |
Baglietto, Varazze: MAS451, 452 |
1 - 2.1941: MAS451, 452 |
MAS451 (26.7.1941), MAS452 (26.7.1941) |
none |
none |
Technical data
| Displacement standard, t | 20 |
|---|---|
| Displacement full, t | 24 |
| Length, m | 18.0 |
| Breadth, m | 4.78 |
| Draught, m | 1.56 |
| No of shafts | 2 |
| Machinery | 2 Isotta Fraschini petrol engines / 2 Alfa Romeo cruising petrol engines |
| Power, h. p. | 2200 / 160 |
| Max speed, kts | 42 / 8 |
| Fuel, t | petrol |
| Endurance, nm(kts) | 330(42) |
| Armament | 1 x 1 - 13.2/76, 2 - 450 TT, 6 DC |
| Electronic equipment | presumably hydrophone |
| Complement | 11 |
Standard scale images

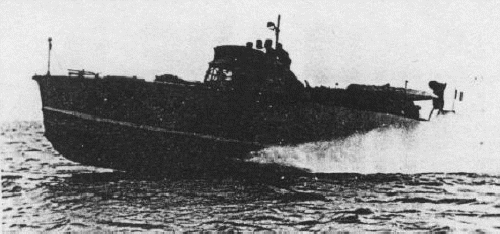

MAS451 1941
Graphics
MAS451 1941
Project history
Type "Baglietto fast": Development of MAS424. Except main Isotta-Fraschini engines, they had also 2 80hp Alpha-Romeo petrol engines for cruising (endurance under electric motors was 836(8)nm).
Modernizations
None.
Naval service
No significant events.
