"SVAN 19ton" type ("B" group 1st series) motor gun boats (MAS115) (1918)

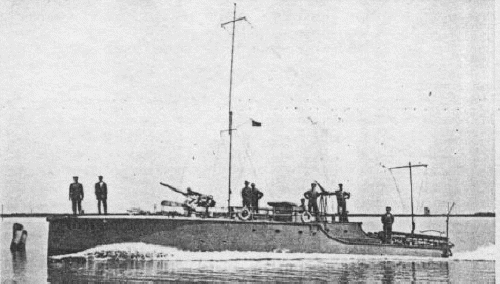

MAS120 1918
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MAS115 - 139 |
SVAN, Piacenza / Arsenale di Venezia: MAS115, 116, 119, 120, 122 SVAN, Piacenza / SVAN, La Spezia: MAS117, 118, 123 - 139 SVAN, La Spezia: MAS121 |
1918: MAS115 - 139 |
MAS125 (9.8.1918), MAS133 (1.6.1927), MAS135 (22.4.1919) |
none |
1921: MAS134 1922: MAS115 - 117, 119 - 122, 127 1925: MAS131, 137, 139 1926: MAS118, 126, 129, 132, 136, 138 1927: MAS130 1928: MAS123, 124, 128 |
Technical data
| Displacement normal, t | 19 |
|---|---|
| Displacement full, t |
|
| Length, m | 18.0 |
| Breadth, m | 3.20 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 Isotta-Fraschini petrol engines |
| Power, h. p. | 500 |
| Max speed, kts | 21 - 23 |
| Fuel, t | petrol |
| Endurance, nm(kts) | 300(18) |
| Armament | 1 x 1 - 76/30 A1914, 1 x 1 - 6.5/115, 20 DC |
| Electronic equipment | hydrophone |
| Complement | 12 |
Standard scale images
MAS115 1918
Graphics
MAS120 1918
Project history
Boats were arranged with hydrophone and used as anti-submarine.
Modernizations
None.
Naval service
Nearly all boats were completed in SVAN Yard at Piacenza and armed in the Arsenale di Venezia.
