"HDML" type motor launches (1942 - 1943 / 1946)

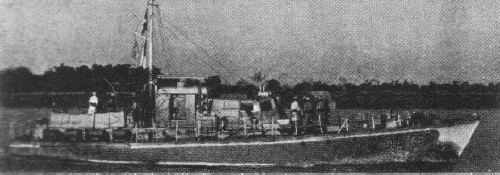

ML1115 1946
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
(ex-ML1004) (ex-ML1012) (ex-ML1017) (ex-ML1023) (ex-ML1028) (ex-ML1155) (ex-ML1239) (ex-ML1251) |
Berthon Boat, Lymington, UK: (ex-ML1239) Bunn, Wroxham, UK: (ex-ML1155) Bute Slip, Clyde, UK: (ex-ML1028) Harland & Wolff, Belfast, UK: (ex-ML1017) Newman, Hamworthy, UK: (ex-ML1012), (ex-ML1251) Sittingbourne SB Co., UK: (ex-ML1023) Walker, Colombo, Ceylon: (ex-ML1004) |
1 - 12.1941 // 3.1946: (ex-ML1004), (ex-ML1012), (ex-ML1017), (ex-ML1023), (ex-ML1028) 1 - 12.1942 // 3.1946: (ex-ML1239) 1 - 12.1943 // 2 - 3.1946: (ex-ML1155), (ex-ML1251) |
none |
none |
1950s?: (ex-ML1004, 1012, 1017, 1023, 1028, 1155, 1239, 1251) |
Technical data
| Displacement standard, t | 44 - 46 |
|---|---|
| Displacement full, t | 52 - 54 |
| Length, m | 22.0 |
| Breadth, m | 4.83 |
| Draught, m | 1.40 deep load |
| No of shafts | 2 |
| Machinery | (ex-ML1012), (ex-ML1251): 2 Gardner diesels (ex-ML1017), (ex-ML1028): 2 Glennifer diesels (ex-ML1004), (ex-ML1023), (ex-ML1155), (ex-ML1239): 2 Thornycroft diesels |
| Power, h. p. | (ex-ML1012), (ex-ML1251): 300 (ex-ML1017), (ex-ML1028): 320 (ex-ML1004), (ex-ML1023), (ex-ML1155), (ex-ML1239): 260 |
| Max speed, kts | (ex-ML1012), (ex-ML1251): 11.8 (ex-ML1017), (ex-ML1028): 11.5 (ex-ML1004), (ex-ML1023), (ex-ML1155), (ex-ML1239): 11 |
| Fuel, t | diesel oil 7500 l |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 20/70 Oerlikon Mk IV, 2 x 2 - 7.7/94, 8 DC |
| Electronic equipment | type 291U radar (some), type 134 sonar |
| Complement | 10 |
Standard scale images
ML1387 1943
Graphics
ML1115 1946
Project history
Ex-British Admiralty-type harbour defence motor launches (HDMLs)
Modernizations
None.
Naval service
No significant events.
