GABRIELE patrol boats (1966 - 1967)
Gabriele 1999
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
G70 Gabriele G71 Grasso |
Picchiotti, Viareggio: G70, 71 |
1967: G70, G71 |
none |
none |
2007: G70 2010: G71 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 54 |
| Length, m | 23.2 |
| Breadth, m | 6.60 |
| Draught, m | 1.00 |
| No of shafts | 3 |
| Machinery | 3 CRM 18-DS/3 diesels |
| Power, h. p. | 2500 |
| Max speed, kts | 34.2 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 730(19.7) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | SC-1210 radar |
| Complement | 11 |
Graphics

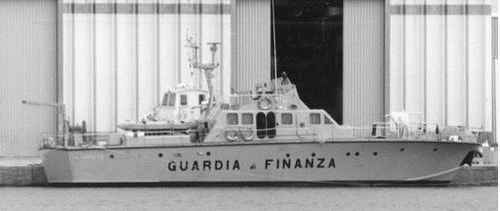

Gabriele 1999
Project history
Patrol boats of Italian Customs Service (Guardia di Finanza).
Modernizations
None.
Naval service
No significant events.
