MONTE GRAPPA monitors (1918 - 1920)

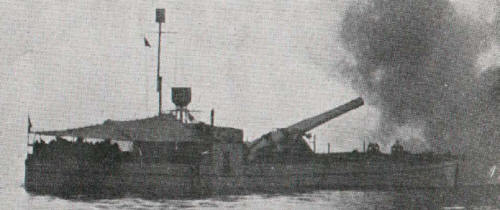

Monte Grappa 1919
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Monte Cengio | R. Cantiere di Castellamare di Stabia | 7/1918 | 10.12.1919 | 6/1920 | auxiliary 11.1924 | ||
| Monte Grappa | R. Cantiere di Castellamare di Stabia | 5.1918 | 21.9.1918 | 1.1919 | stricken 11.1924 | ||
| Montello | R. Cantiere di Castellamare di Stabia | 5.1918 | 31.12.1918 | 5.1919 | stricken 11.1924 | ||
| Monte Novegno | R. Cantiere di Castellamare di Stabia | 5/1918 | 31.5.1919 | 6/1920 | auxiliary 11.1924 |
Technical data
| Displacement normal, t | 575 - 633 |
|---|---|
| Displacement full, t | |
| Length, m | 40.0 pp |
| Breadth, m | 10.0 |
| Draught, m | 1.78 |
| No of shafts | 2 |
| Machinery | 2 Fiat-San Giorgio diesels |
| Power, h. p. | 700 |
| Max speed, kts | 7 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 370(7) |
| Armament | 1 x 1 - 381/40 V1914 |
| Complement |
Graphics
Monte Grappa 1919
Project history
Unique series of floating batteries, built under special order, instead of converted from trophy vessels. Officially they were rated as monitors.
Modernizations
None
Naval service
No significant events.
