TRIESTE amphibious assault ship


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Trieste     Fincantieri, Castellammare di Stabia 20.2.2018 2019 2022 building (2019)


Technical data


Displacement standard, t
Displacement full, t33000
Length, m

213.4 pp 245.0 oa

Breadth, m

36.0

Draught, m9.01
No of shafts2
Machinery

CODOG: 2 Rolls-Royce MT30 gas turbines / 2 MAN 20V32/44CR diesels / 4 MAN 9L32/44CR diesel-generators, 2 electric motors

Power, h. p.

102000 / 32000 / 6040

Max speed, kts

25 / 18 / 10

Fuel, t

gas turbine / diesel oil

Endurance, nm(kts)7000(16)
Armament

2 x 8 SYLVER A50 SAM (VLS, 16 Aster-15/30 or 32 CAMM ER) (fitted for), 3 x 1 - 76/62 OTO-Melara Strales, 3 x 1 - 25/80 KBA25/80, 12 aircraft (12 AW101 or (6 F-35B Lightning, 6 AW129D))

Military load4 LCU or 1 LCAC, 604 troops, vehicles, cargo
Electronic equipmentAESA 3D DBR 4FF (X-band), Power Shield AESA LRR, SPN-720 radars, Black Snake sonar, 2x ODLS-20 decoy RL, SADOC Mk 4 CCS
Complement460

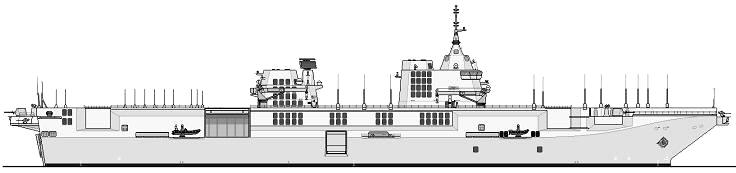

Standard scale images


<i>Trieste</i>
Trieste


Project history

Amphibious assault ship, replacement for the San Giorgio and San Marco. Ship has 50.0x15.0m well deck for 1 LCAC or 4 60t LCU, 55.0x19.0m vehicle parking deck and 107.0x21.0m aviation hangar.230.0x36.0m flight deck has 9 landing spots for helicopters.

Modernizations

None.

Naval service

No significant events.
