MDN94 landing craft (1985 - 1994)





MDN101 2001

Ships


Names Builders Commissioned Losses Transfers Discarding

MDN94-104

MDN108, 109

MDN114-120

Tecnomatic, Ancona: MDN94, 95

Tecnomatic, Bari: MDN96-104

Tecnoplast, Venezia: MDN108, 109, 114-120

1985: MDN94, 95

1987-1988: MDN96-104

1991-1994: MDN108, 109, 114-120

none

none

in service (2019): MDN94-104, 108, 109, 114-120



Technical data


Displacement standard, t

8

Displacement full, t

14

Length, m

13.1

Breadth, m

3.80

Draught, m

0.70

No of shafts

MDN94-104, 108, 109, 114-117: 2

MDN118-120: 2 waterjets

Machinery

2 Fiat-AIFO 8361-SRM diesels

Power, h. p.

700

Max speed, kts

22

Fuel, t

diesel oil

Endurance, nm(kts)

100(12)

Armament

none

Military load

45 troops or 4.5t cargo

Electronic equipment

none

Complement

3



Graphics

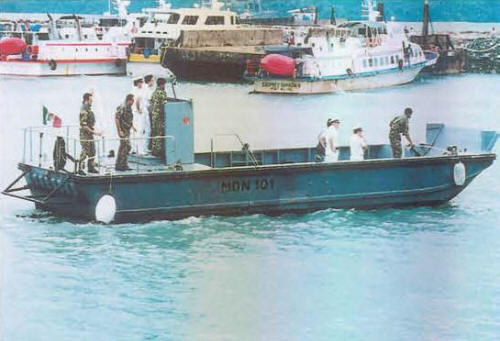

MDN101<i> </i>2001
MDN101 2001


Project history

GRP personnel launches for use with the San Giorgio class. Assigned NATO "L"-series pennants are no longer carried, and the craft have been renumbered from the original MTP (Mototrasporti Personale) series to MDN. The last three built had waterjets, and the propellers are being replaced by waterjets in the earlier units. Have a small bow ramp and can transport light vehicles.

Modernizations

1990s-2000s, MDN94-104, 108, 109, 114-117: propellers were replaced by 2 waterjets

Naval service

No significant events.
