ASHDOD small landing ships (1966-1967)
1976
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| אשדוד [Ashdod] | F61 | Israel SYds, Haifa | 1966 | trial ship 2001 | |||
| אשקלון [Ashkelon] | F63 | Israel SYds, Haifa | 1967 | stricken 1993, to Ethiopia (LC302) | |||
| אכזיב [Akhziv] | F65 | Israel SYds, Haifa | 1967 | stricken 1999 |
Technical data
| Displacement standard, t | 400 |
|---|---|
| Displacement full, t | 730 |
| Length, m | 62.7 |
| Breadth, m | 10.0 |
| Draught, m | 1.80 |
| No of shafts | 3 |
| Machinery | 3 MWM diesels |
| Power, h. p. | 1900 |
| Max speed, kts | 10.5 |
| Fuel, t | diesel oil 37 |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 20/70 Mk 10 |
| Military load | tanks, troops |
| Electronic equipment | radar |
| Complement | 20 |
Standard scale images

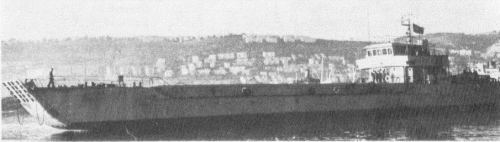

Ashdod 1975
Graphics
1976
Project history
Standard LCUs.
Modernizations
None.
Naval service
No significant events.
