No840 patrol boats (2004-2009)

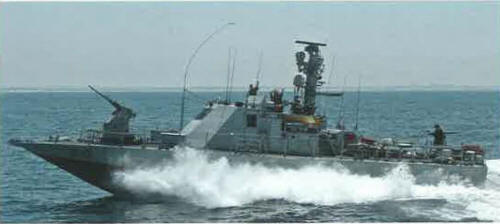

840 2010
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
840-844 |
Israeli SY, Haifa: 840-844 |
2004: 840, 841 2008-2009: 842-844 |
none |
none |
in service (2019): 840-844 |
Technical data
| Displacement standard, t | 50 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 20.0 pp 24.8 oa |
| Breadth, m | 6.00 |
| Draught, m | 1.21 |
| No of shafts | 2 waterjets |
| Machinery | 840, 841: 2 Deutz-MWM TBD604 BV16 diesels 842-844: 2 MTU 12V396 TE94 diesels |
| Power, h. p. | 840, 841: 5000 842-844: 4570 |
| Max speed, kts | 840, 841: 50 842-844: 46 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 850(16) |
| Armament | 1 x 1 - 25/75 Typhoon, 1 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90 |
| Electronic equipment | Koden MD3220 Mk 2 radar, MSIS, POP300 e/o systems |
| Complement | 15 |
Graphics
840 2010
Project history
Development of Shaldag craft offered by Israeli SY to the Israely Navy but rejected, became Shaldag Mk II. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
