BAYANDOR frigates (1964-1969)

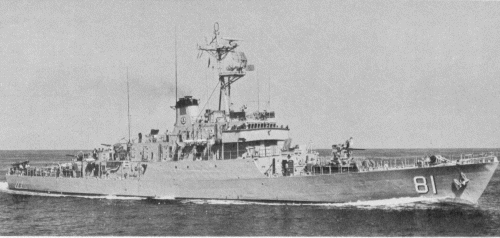

Bayandor 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
بایندر [Bayandor] F25, 1976- 81   Levingston SB, Orange, USA 20.8.1962 7.7.1963 15.5.1964 in service (2019)
نقدی [Naghdi] F26, 1976- 82   Levingston SB, Orange, USA 12.9.1962 10.10.1963 22.7.1964 in service (2019)
میلانیان [Milanian] F27, 1976- 83   Levingston SB, Orange, USA 1.5.1967 4.1.1968 13.2.1969 sunk 1982
کهنمویی [Kahnamuie] F28, 1976- 84   Levingston SB, Orange, USA 12.6.1967 4.4.1968 13.2.1969 sunk 1982


Technical data


Displacement standard, t

900

Displacement full, t

1135

Length, m

83.8

Breadth, m

10.0

Draught, m

3.00

No of shafts

2

Machinery

4 Fairbanks-Morse 38D81/8-10 diesels

Power, h. p.

6000

Max speed, kts

20

Fuel, t

diesel oil 110

Endurance, nm(kts)

3000(15)

Armament

2 x 1 - 76/50 Mk 34, 1 x 2 - 40/60 Mk 1, 1 x 24 - 178 Hedgehog Mk 11 ASWRL, 4 DCT, 2 DCR (60)

Electronic equipmentSPS-6C, SPG-34, Raytheon 1650 radars, SQS-17 sonar
Complement

140



Standard scale images


<i>Bayandor </i>1970
Bayandor 1970


Graphics


<i>Bayandor </i>1978
Bayandor 1978
<i>Bayandor </i>1998
Bayandor 1998


Project history

Transferred from the USA to Iran under Mutual Assistance Programme (MDAP). Built in two phases, five years apart. Design similar to the Italian-built Pattimura class built for Indonesia. Sometimes classified as corvettes. Named after naval officers killed in action with the British in 1941.

Modernizations

1980s, both survived: - 1 x 24 - 178 Hedgehog ASWRL; + 1 x 2 - 23/87 ZU-23-2

1990, both survived: - 1 x 2 - 23/87, 4 DCT, 2 DCR, SPG-34 radar; + 2 x 1 - 20/90 GAM-B-01, 2 x 1 - 12.7/90, Decca 1226 radar

2009, Naghdi; 2013, Bayandor: - 2 x 1 - 76/50; + 2 x 2 C-802 Noor SSM (4 C-802), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 3 - 324 TT

Naval service

Two ships were lost during Iran-Iraq war in 1982: Milanian was bombed and Kahnamoui was sunk by missiles launched from helicopters.
