Mahan 1975

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
كيفن [Keyvan]	PC61, 1976- 201		USCG Yd, Curtis Bay, USA			1.1956	in service (2019)
مهرن [Mehran]	PC62, 1976- 203		USCG Yd, Curtis Bay, USA			1959	in service (2019)
ترن [Tiran], 1985- أزدي [Azadi]	PC63, 1976- 202		USCG Yd, Curtis Bay, USA			1957	in service (2019)

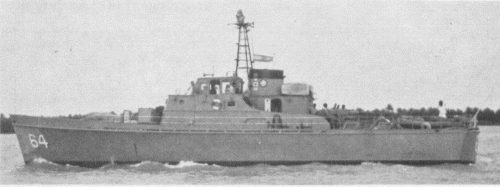

مهن [Mahan]	PC64, 1976- 204		USCG Yd, Curtis Bay, USA			1959	sunk 1980/81

Technical data

Displacement standard, t	85
Displacement full, t	107
Length, m	29.0
Breadth, m	6.20
Draught, m	2.00
No of shafts	2
Machinery	4 Cummins VT-12-M700 diesels
Power, h. p.	2200
Max speed, kts	20
Fuel, t	diesel oil
Endurance, nm(kts)	1500(15)
Armament	1 x 1 - 40/60 Mk 3, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCR (8)
Electronic equipment	radar, sonar
Complement	15

Standard scale images

Graphics

Project history

US 95ft Coast Guard cutters, built for Iran under MDAP.

Modernizations

1980, all: - 2 x 4 - 178 Mousetrap ASWRL, 2 DCR; + 1 x 2 - 23/87 ZU-23-2, 2 x 1 - 12.7/90

late 2010s, all survived: - 1 x 2 - 23/87; + 2 x 1 C-704 SSM (2 C-704), 1 x 1 - 20/90 GAM-B01

Naval service

No significant events.
