PULAU RENGAT coastal minehunters (1988)

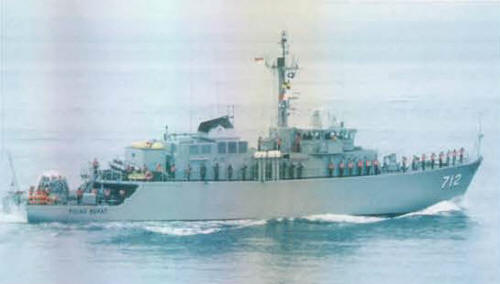

Pulau Rupat 2004

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Pulau Rengat 711   Van der Giessen de Noord, Alblasserdam, Netherlands 29.3.1985 23.7.1987 26.3.1988 in service (2019)
Pulau Rupat 712   Van der Giessen de Noord, Alblasserdam, Netherlands 22.7.1985 27.8.1987 14.10.1988 in service (2019)


Technical data


Displacement standard, t

510
Displacement normal, t

588
Length, m

47.1 pp 51.5 oa
Breadth, m

8.90
Draught, m

2.47 hull 3.50 max
No of shafts

2 + 2 Schottel active rudders
Machinery

2 MTU 12V396 TC Db51 diesels + 2 electric motors
Power, h. p.

2400 + 240
Max speed, kts

15.5
Fuel, t

diesel oil
Endurance, nm(kts)

3000(12)
Armament

2 x 1 - 20/85 S.20, 2x PAP-104 Mk 5 USV, OD-3 mechanical, F-82 magnetic, AS203 acoustic minesweeping gear
Electronic equipment

Decca 1229 radar, TSM2022 sonar, SEWACO-RI CCS
Complement

45


Standard scale images


<i>Pulau Rengat </i>2000
Pulau Rengat 2000


Graphics


<i>Pulau Rupat </i>2004
Pulau Rupat 2004


Project history

New ships ordered on 29 March 1985 as Vlaardingen and Willemstad of Tripartite series from the shipyard and taken from Royal Netherlands Navy production. Carry two PAP 104 Mk 5 remote-controlled submersibles. GRP construction.

Modernizations

None.

Naval service

No significant events.
