TELUK AMBOINA tank landing ship (1961)

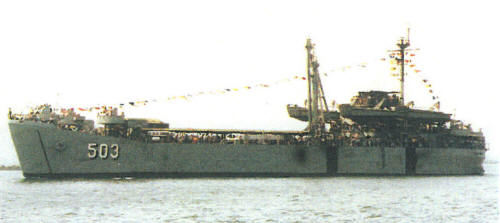

Teluk Amboina 1995

Ships


Name No Yard No Builder Laid down Launched Comp. Fate
Teluk Amboina 869, 1975- 503   Sasebo Heavy Industries, Japan   17.3.1961 6.1961 in service (2019)


Technical data


Displacement standard, t

2378

Displacement full, t

4145

Length, m

95.4 pp 99.9 oa

Breadth, m

15.2

Draught, m

4.60

No of shafts

2

Machinery

2 MAN V6V 22/30 diesels

Power, h. p.

3200

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts)

4000(13)

Armament

6 x 1 - 40/60 Mk 3

Military load

4 LCVP, 20 medium tanks or 2100t of cargo, 212 marines

Electronic equipment

radar

Complement88


Standard scale images


<i>Teluk Amboina </i>1965
Teluk Amboina 1965


Graphics


<i>Teluk Amboina </i>1995
Teluk Amboina 1995


Project history

Built as war reparation. Nearly copy of LST511 class with more powerful diesels and 30t crane.

Modernizations

late 1980s: - 6 x 1 - 40/60; + 6 x 1 - 37/63 70K

Naval service

No significant events.
