TANJUNG NUSANIVE troop transports (1983/2005)





Tanjung Fatagar 2005

Ships


Name No Yard No Builder Laid down Launched Comp. Fate
Tanjung Nusanive (ex-Kambuna) 973   Meyerwerft, Papenburg, West Germany     8.1983 // 1.9.2005 in service (2019)
Tanjung Fatagar (ex-Rinjani) 974   Meyerwerft, Papenburg, West Germany     8.1983 // 1.9.2005 stricken 2014


Technical data


Displacement standard, t
Displacement full, t

11700
Length, m

130.0 pp 140.00 oa
Breadth, m

23.4
Draught, m

5.90
No of shafts

2
Machinery

2 MaK 6MU101 diesels
Power, h. p.

17000
Max speed, kts

20
Fuel, t

diesel oil
Endurance, nm(kts)5500(20)
Armament

2 x 1 - 12.7/90
Military load

1600 passengers
Electronic equipment

2x nav. radars
Complement119


Standard scale images

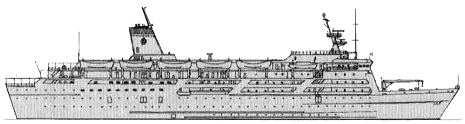

<i>Tanjung Nusanive </i>2010
Tanjung Nusanive 2010


Graphics

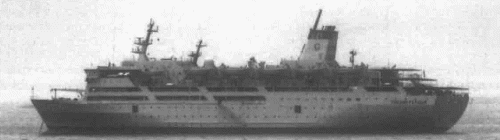

<i>Tanjung Fatagar </i>2005
Tanjung Fatagar 2005


Project history

Former passenger vessels transferred to the navy from the Sea Communications Agency during 2005.

Modernizations

None.

Naval service

No significant events.
