Makassar 2007

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp.	Fate

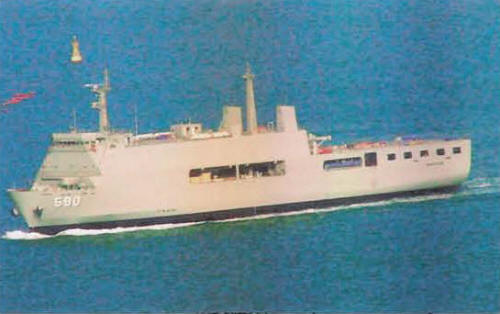

Makassar	590		Dae Sun, Pusan, South Korea	2005	7.12.2006	29.4.2007	in service (2019)
Surabaya	591		Dae Sun, Pusan, South Korea	7.12.2006	23.3.2007	1.8.2007	in service (2019)
Banjarmasin	592		PT PAL, Surabaya	19.10.2006	28.8.2008	28.11.2009	in service (2019)

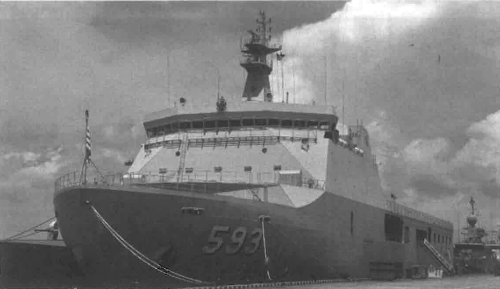

Banda Aceh	593		PT PAL, Surabaya	7.12.2007	19.3.2010	21.3.2011	in service (2019)
Semarang	594		PT PAL, Surabaya	28.8.2017	4.8.2018	21.1.2019	in service (2019)

Technical data

Displacement standard, t	7800
Displacement full, t	11580
Length, m	125.0
Breadth, m	22.0
Draught, m	4.90 mean hull
No of shafts	2
Machinery	2 MAN-Burmeister & Wain 8L28/32A diesels
Power, h. p.	5250
Max speed, kts	15
Fuel, t	diesel oil
Endurance, nm(kts)	8600(12)
Armament	590-593: 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 12.7/90, 2 helicopters (AS332L Super Puma) 594: 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 12.7/90, 3 helicopters (AS332L Super Puma)
Military load	590-593: 2 LCM, 2 LCVP, 14 tanks, 518 troops or 2480 t cargo 594: 2 LCM, 2 LCVP, 14 tanks, 645 troops or 2480 t cargo
Electronic equipment	2x nav. radars
Complement	126

Standard scale images

Graphics

Project history

Modified Tanjung Dalpele, differed by superstructure form, being slightly larger and having 3 landing spots for helicopters. Two latter ships were built mostly as command ships: they have smaller and shorter superstructure and longer flight deck.

Modernizations

None.

Naval service

No significant events.
