BISMA patrol ships (2003)
Bisma 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Bisma | 520 | Gondan, Castropol, Spain | 6.5.2002 | 4.11.2002 | 14.5.2003 | in service (2019) | |
| Baladewa | 521 | Gondan, Castropol, Spain | 20.5.2002 | 18.11.2002 | 3.7.2003 | in service (2019) |
Technical data
| Displacement standard, t | 622 |
|---|---|
| Displacement full, t | |
| Length, m | 53.9 pp 61.0 oa |
| Breadth, m | 9.90 |
| Draught, m | 2.60 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V595 TE90 diesels |
| Power, h. p. | 8700 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(12) |
| Armament | helicopter deck |
| Electronic equipment | 2x radars |
| Complement |
Standard scale images

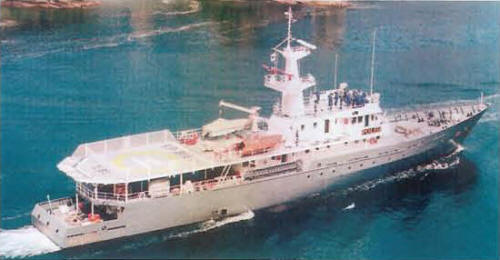

Bisma 2010
Graphics
Bisma 2003
Project history
Large patrol ship. Primarily for SAR duties.
Modernizations
None.
Naval service
No significant events.
