BC3001 coastal patrol craft (1979-1981)





BC3006 1986

Ships


Names Builders Commissioned Losses Transfers Discarding

BC3001-3007

CN d l'Estérel, Cannes, France: BC3001-3007

1979: BC3001

1980: BC3002-3005

1981: BC3006, 3007

none

none

in service (2019): BC3001-3007



Technical data


Displacement standard, t57
Displacement full, t71
Length, m28.2
Breadth, m5.20
Draught, m1.60
No of shafts

2

Machinery

2 MTU 12V331 TC81 diesels

Power, h. p.2700
Max speed, kts34
Fuel, t

diesel oil

Endurance, nm(kts)800(15)
Armament1 x 1 - 12.7/90
Electronic equipmentradar
Complement18


Graphics

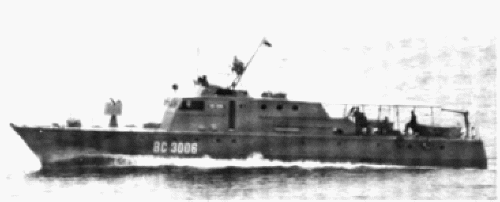

BC3006 1986
BC3006 1986


Project history

Patrol boats.

Modernizations

None.

Naval service

No significant events.
