BC30001 patrol boats (2009-2017)
BC30001 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| BC30001 | PT PAL, Surabaya | 19.12.2007 | 21.12.2009 | in service (2019) | |||
| BC30002 | PT PAL, Surabaya | 19.12.2007 | 12.2.2010 | in service (2019) | |||
| BC30003 | PT PAL, Surabaya | 19.12.2007 | 1.4.2010 | in service (2019) | |||
| BC30004 | PT Daya Radar Utama, Jakarta | 2016 | in service (2019) | ||||
| BC30005 | PT Daya Radar Utama, Jakarta | 2016 | in service (2019) | ||||
| BC30006 | PT Daya Radar Utama, Jakarta | 2017 | in service (2019) | ||||
| BC30007 | PT Daya Radar Utama, Jakarta | 2017 | in service (2019) |
Technical data
| Displacement standard, t | 165 |
|---|---|
| Displacement full, t | 240 |
| Length, m | 36.7 pp 42.0 oa |
| Breadth, m | 7.30 |
| Draught, m | 2.40 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V4000 M93L + 2 MTU 16V4000 M73L diesels |
| Power, h. p. | 7400 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000 |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Furuno FAR2127, Furuno FAR3220 radars |
| Complement | 25 |
Graphics

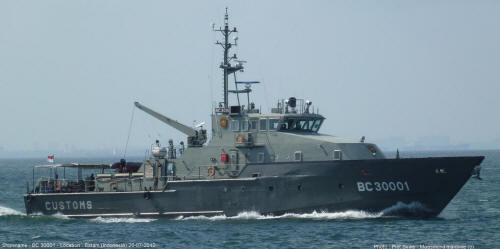

BC30001 2012
Project history
Patrol craft. Aluminium construction, variant of Australian Bay design.
Modernizations
None.
Naval service
No significant events.
