home

fighting ships of the world

INDONESIAN NAVY (INDONESIA)

ESCORTS

MARTHA KHRISTINA TIYAHAHU frigates (1962-1964/1985-1986)

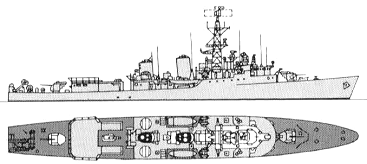

Hasanuddin 1990

Name No Yard No Builder Laid down Launched Comp Fate
Martha Khristina Tiyahahu (ex-Zulu) 331 674 Stephen, Govan, UK 13/12/1960 3/7/1962 17/4/1964 // 2/5/1985 stricken 2000
Wilhelmus Zakarias Yohannes (ex-Gurkha) 332 4180 Thornycroft, Woolston, UK 3/11/1958 11/7/1960 13/2/1963 // 21/10/1985 stricken 2000
Hasanuddin (ex-Tartar) 333   Devonport DYd, UK 22/10/1959 19/9/1960 26/2/1962 // 3/4/1986 stricken 2000



Displacement standard, t

2300

Displacement full, t

2700

Length, m

106.7 pp 109.7 oa

Breadth, m

12.9

Draught, m

4.00 max

No of shafts

1

Machinery

COSAG: 1 Metrovick geared steam turbine, 1 Babcock & Wilcox boiler + AEI G6 gas turbine

Power, h. p.

12500 + 7500 = 20000

Max speed, kts

27

Fuel, t

oil 400

Endurance, nm(kts)

4500(12)

Armament

2 x 4 Sea Cat GWS21 SAM (24 Sea Cat), 2 x 1 - 120/45 Mk 5, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/79, 1 x 3 - 305 Limbo Mk 10 ASWRL, 1 DCR, 1 helicopter (Wasp)

Sensors

type 965 AKE-1, type 993, type 903, 2x type 262, type 978 radars, type 170, type 177, type 162 sonars, 2x Corvus decoy RL

Complement

268

Ship project history: Former RN 'Tribal' class frigates, deleted by RN in March 1984 and purchased by Indonesia 16/4/1984. All were refitted by Vosper before transfer and commissioned by Indonesian Navy in 1985-1986.

Modernizations: None.

Naval service: No significant events.

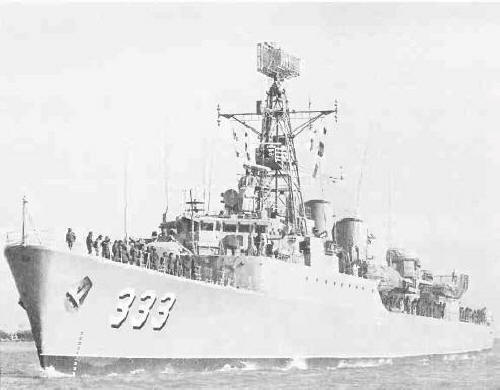

Hasanuddin 1986

Ivan Gogin, 2017
