FATAHILLAH frigates (1979-1980)

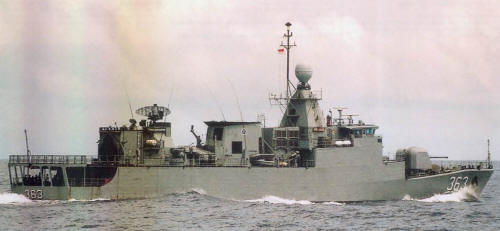

Nala 2000

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Fatahillah 361 809 Wilton-Fijenoord, Schiedam, Netherlands 31.1.1977 22.12.1977 16.7.1979 in service (2019)
Malahayati 362 810 Wilton-Fijenoord, Schiedam, Netherlands 28.7.1977 19.6.1978 21.3.1980 in service (2019)
Nala 363 811 Wilton-Fijenoord, Schiedam, Netherlands 27.1.1978 11.1.1979 11.8.1980 in service (2019)


Technical data


Displacement standard, t1150
Displacement full, t

1450

Length, m

83.9

Breadth, m

11.1

Draught, m

3.30

No of shafts

2

Machinery

CODOG: 1 Olympus TM3B gas turbine / 2 MTU 16V956TB81 diesels

Power, h. p.

25000 / 8000

Max speed, kts

30

Fuel, t

gas turbine oil, diesel oil

Endurance, nm(kts)

4250(16)

Armament

361, 362: 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 120/46 TAK120, 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20, 2 x 3 - 324 Mk 32 TT (12), 1 x 2 - 375 Bofors ASWRL

363: 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 120/46 TAK120, 2 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20, 1 x 2 - 375 Bofors ASWRL, 1 helicopter (NBO-105)

Electronic equipment

Decca AC1229, DA-05, WM-28 radars, LIROD Mk 1 e/o director, PHS-32 sonar, Susie I ECM suite, 2x Corvus decoy RL, T-Mk 6 Fanfare torpedo decoy, SEWACO CCS

Complement

82



Standard scale images


<i>Fatahillah </i>2000
Fatahillah 2000
<i>Nala </i>2000
Nala 2000


Graphics


<i>Nala </i>2000
Nala 2000
<i>Fatahillah </i>2004 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Fatahillah 2004 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

These compact ships of small frigate type were ordered from the Netherlands n August 1975 and designed by NEVESBU which belonged to Rhine-Schelde-Verolme. Air-conditioned living spaces and NBC warfare citadel. Officially they are classed as corvettes. Nala differs from sisters having a helicopter facility and collapsible hangar for one small helicopter and Bofors 40mm guns abreast the hangar.

Modernizations

None.

Naval service

No significant events.
